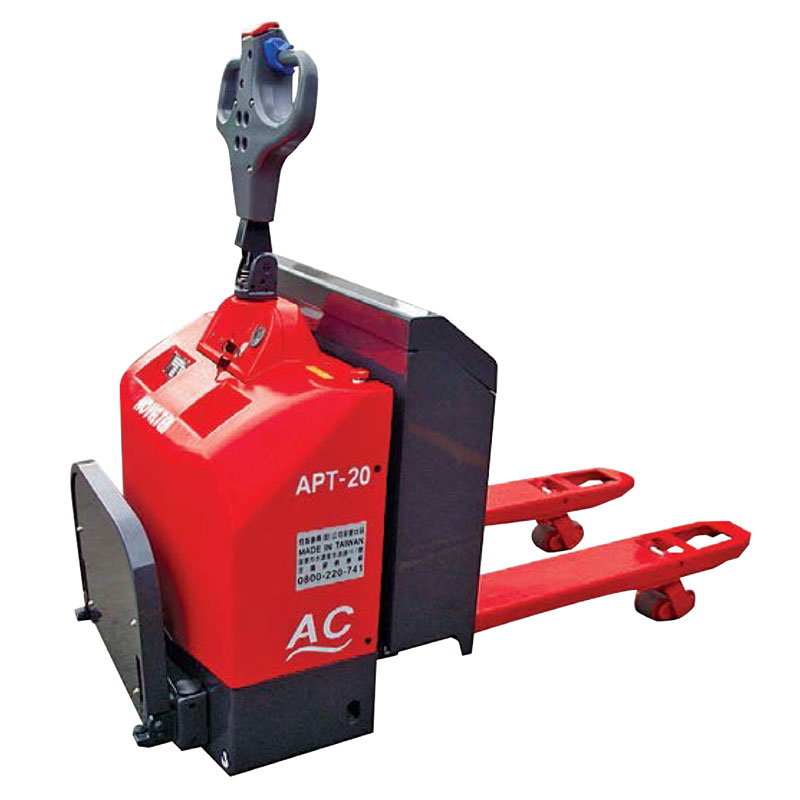

APT-20/30 + EPS
| Quantity: | |
|---|---|
The Noveltek APT-20/30 AC Electric Pallet Truck with EPS is designed for warehouse operations that demand precision, efficiency, and reduced operator fatigue over multi-hour shifts.
At the heart of the APT-20/30 is the Electronic Power Steering (EPS) system — a 185° full-arc steering arm that responds to the operator's intent rather than their physical strength. Where conventional pallet trucks require significant arm effort to navigate tight warehouse aisles or dock areas, the EPS system handles the resistance, leaving the operator to focus on accuracy rather than exertion.
The AC drive motor architecture reinforces this efficiency. Running without carbon brushes, the motor requires no brush replacement cycles and delivers its 30%-plus energy savings consistently over the machine's lifespan. The latest AC inverter circuit control system provides smooth, quiet operation — a practical benefit in climate-controlled or noise-sensitive environments.
The LED MDI-CAN indicator panel puts actionable information in front of the operator at all times: battery level, operating hours, and fault codes displayed in a format designed for quick reading during operation. The integrated CAN-BUS system enables rapid service diagnostics — when maintenance is needed, the system tells you exactly why, reducing downtime.
Load capacity covers 2 tons (APT-20) and 3 tons (APT-30). OEM/ODM customization is available for fork dimensions, battery specifications, and application-specific configurations.
All Noveltek products are 100% manufactured in Taiwan, ISO 9001 certified (since 2005), and CE certified (since 2009). Non-China Origin — not subject to U.S. Section 301 tariffs.
Electronic Power Steering (EPS): 185° full-arc steering arm operation — precise control with minimal physical effort, reducing operator fatigue on long shifts
AC Drive Motor: Saves a minimum of 30% electricity vs. conventional DC systems; brushless design eliminates carbon brush replacement

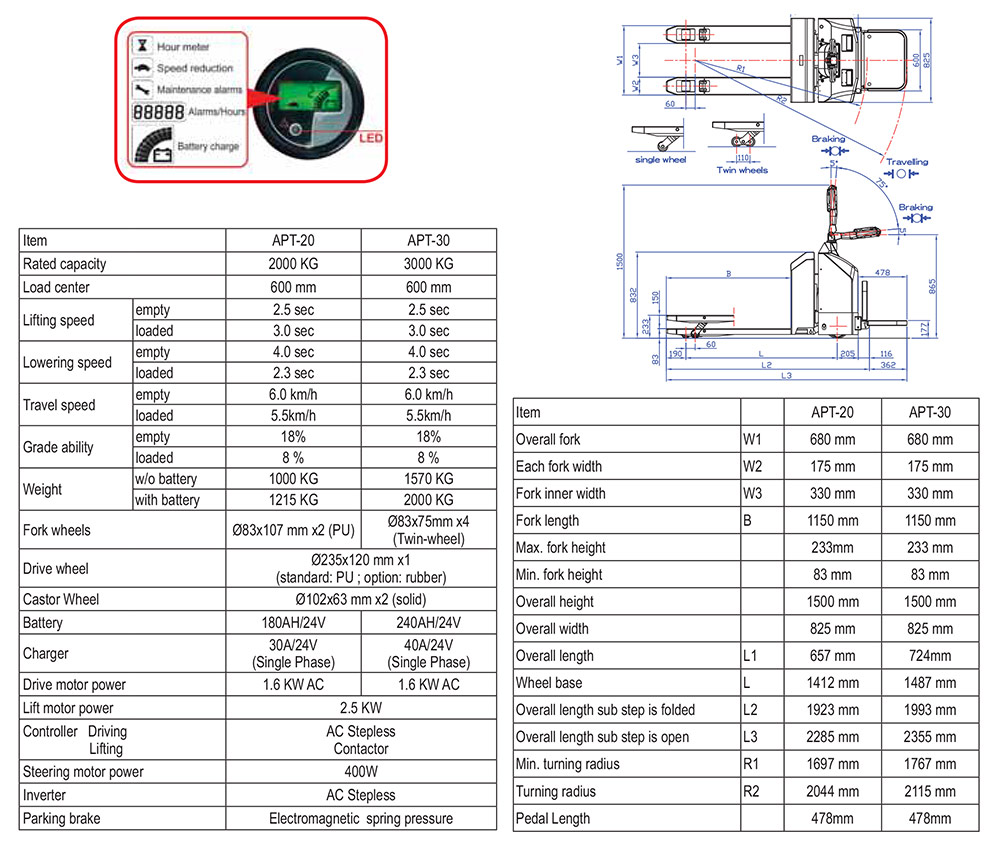

LED MDI-CAN Multifunctional Indicator: Real-time battery state of charge, operating hour meter, low-battery protection alarm, and full trouble code display via CAN-BUS for faster diagnostics
Automatic Speed Reduction While Steering: Speed automatically reduces by 50% during cornering for safer, more controlled load movement
Adjustable Speed Settings: Programmable via on-board programmer — tune performance to match your facility's operational requirements
Long-Duration Traction Battery: Professional-grade industrial battery engineered for continuous shift operation
Lead-Free PU Baked Enamel Coating: Multi-layer anti-rust primer with lead-free finish for durability in warehouse environments
Warehouse and distribution center pallet transport
Production line material flow between workstations
Retail back-of-house logistics
Cold storage and temperature-controlled environments (zero emissions)
Multi-shift operations where operator fatigue is a KPI concern
Q1：What is EPS on a powered pallet truck?
A1：EPS stands for Electronic Power Steering. On the APT-20/30, the 185° steering arm uses an electric power-assist system that dramatically reduces the physical effort required to steer — particularly during repeated tight turns or extended shift operation. It functions similarly to power steering on an automobile: the operator provides direction, and the EPS system handles the resistance. This reduces wrist and arm fatigue and improves precision in narrow aisle environments.
Q2：How does an AC motor improve pallet truck performance vs. a standard DC motor?
A2：AC motors operate without carbon brushes, which are a common wear item on DC motors requiring periodic replacement. This means lower maintenance frequency and cost over the machine's lifespan. AC inverter control also delivers smoother acceleration and more consistent performance across load weights, and achieves at least 30% better energy efficiency compared to equivalent DC systems — directly reducing operating cost per shift.
