APT-20 + EPS (Scale Version)
| Quantity: | |
|---|---|

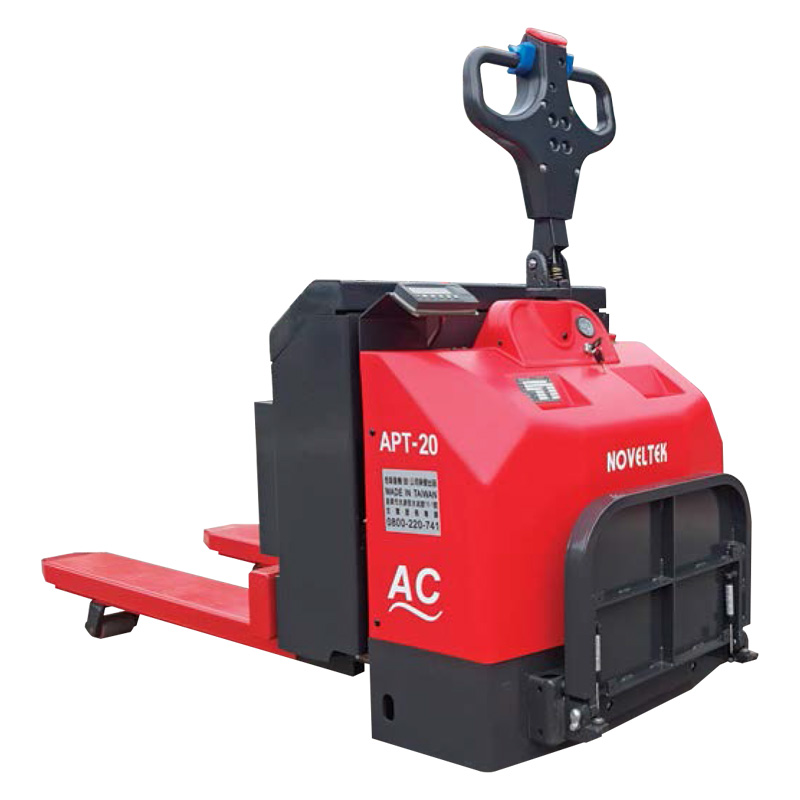

The Noveltek APT-20 EPS Electric Pallet Truck with Digital Scale solves a common inefficiency in warehouse receiving, shipping, and inventory workflows: the need to stop and weigh loads at a separate station.
With the onboard digital scale integrated directly into the pallet truck platform, operators can weigh loads during or immediately after transport without repositioning the pallet or halting the workflow. For operations where weight documentation is required — inbound receiving, outbound freight billing, inventory cycle counts — this integration removes a process step and reduces the time from dock to system.
The EPS (Electronic Power Steering) system provides 185° of full-arc steering arm control with power-assisted precision. Automatic 50% speed reduction during turns protects both load and facility infrastructure during close-quarters maneuvering.
The LED MDI-CAN panel gives operators full visibility: battery state, operating hours, and CAN-BUS fault codes for streamlined maintenance diagnostics. The AC drive motor delivers 30%-plus energy savings over DC equivalents, and the brushless design means no carbon brush replacement cycles.
2-ton load capacity. OEM/ODM customization available for scale accuracy requirements and fork configurations. 100% Made in Taiwan. ISO 9001 certified. CE certified.
Integrated Digital Scale: Onboard load weighing during transport — no separate weigh station required; reduces process steps and improves throughput
Electronic Power Steering (EPS): 185° steering arm arc with power-assisted control; automatic 50% speed reduction during cornering for precise load management
LED MDI-CAN Indicator: Power level, operating hours, CAN-BUS fault code display, and low-battery alarm — complete operational visibility at a glance
AC Drive Motor: Brushless, 30%+ energy savings vs. DC; AC inverter control for smooth, stable power delivery
Programmable Speed Settings: Adjustable via on-board programmer to match facility requirements
Long-Duration Industrial Battery: High-cycle traction battery engineered for continuous warehouse shift use
Lead-Free PU Enamel Coating: Multi-layer anti-rust primer finish
Inbound receiving operations requiring weight verification
Outbound freight documentation and billing by weight
Inventory management with weight-based cycle counts
Food and beverage distribution centers
Pharmaceutical and chemical warehousing where accurate load documentation is required
Q1：Can I use the APT-20 EPS with scale as my primary weighing station?
A1：Yes. The integrated digital scale on the APT-20 EPS is designed to function as a working weighing instrument during normal pallet transport operations. It eliminates the need for a separate floor scale station in many standard warehouse receiving and shipping workflows. For operations requiring certified trade weighing (for commercial billing or regulatory compliance), verify the local certification requirements for integrated mobile scales with your regional standards authority.
Q2：Is the digital scale available as a retrofit option on other APT models?
A2：Noveltek offers OEM/ODM customization across the APT product line. Contact Noveltek's sales team with your specific requirements for scale integration, accuracy specifications, and model compatibility.
