Powered Pallet Stacker (1 Ton / 1.5 Tons / 1.8 Tons / 2 Tons)

Share to:

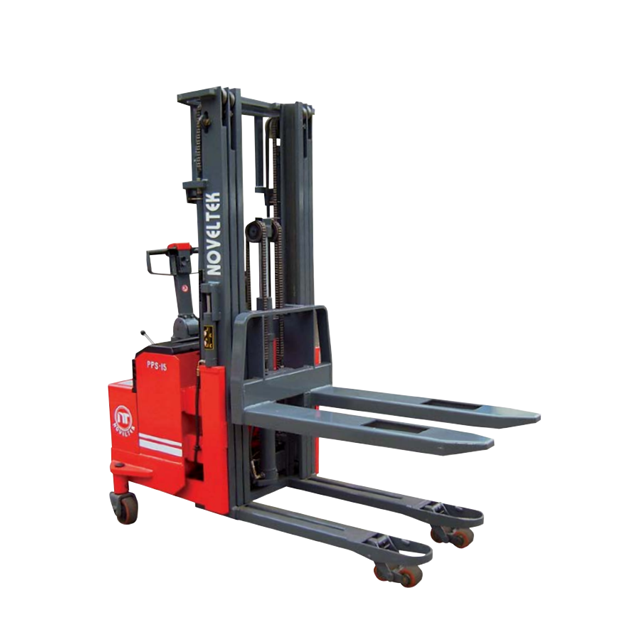

Powered Pallet Stacker (1 Ton / 1.5 Tons / 1.8 Tons / 2 Tons)

5 0 Reviews

· Ride-on drive, easy handling.
· Quiet, safety, durable, reliable.
· No pollution.
· Lead-free PU baked enamel painting.
· Electric drive, electric lifting.
· Straddle can lift 200mm. This stacker can carry 2
pieces of european open pallets at same time. It
also has higher gradeability.
· Body length is 855mm only.
· It can turn in 2.1 meter wide aisle.
· With a slow drive speed switch for duplex
mast HI-LO (3M or above) and triple stage
mast HI-LO (3.5M or above)
· Max. fork lifting height between 2 meter and
6 meter, triple stage, full free lift mast, -35°C
cold storage version...etc. are available as
options.

Model:
PPS-10/15/18/20

Availability:

Quantity:



Inquire Add to Basket

Product Description

· Interior-mounted Cushion Absorbers lessen wobbling and prove extra steadiness. When loaded, specially designed hydraulic-mechanical system evens the weight to castor wheels and drive wheel, making Steering Arm light to control, yet enough to turn and climb.

· The drive wheel can be moved up and down by 45 mm.The drive wheel can be driven over the rise high and depression with-in 45 mm.

· Exceptional stepless MOSFET controller effectively provides progressive acceleration, stable operation and consumes less electricity. Resistance-3 controller is also available.

· Use Germany Hoesch brand section steel to make the high safety mast.

· The bright colored coating is composed of a detailed surface treatment, antirusting primer, and lead-free PU baked enamel painting. This superior painting process withstands harsh working environments and assures a much longer life.

· Firmly-welded steel frame is constructed to preserve structural integrity even upon sustaining super weight.

· All electrically powered driving and lifting not only save manpower and time, but also keep working environments quiet and clean.

· This is a green product.

· Castor wheel under each side of the truck increases balance and prevents turnover as well.

· 2 / 2 Tandem fork wheels(Ø85 mm/3.35") fitted on straddle.It can carry more load without damage.

Option: Digital weight scale

Option: Overhead guard

OPTIONAL SPECIFICATION:

A : Overall fork width 470/520/685mm

C : Fork inner width 90/140/305mm

D : Fork length 1000/1300/1450mm

E : Front end length 250/400mm

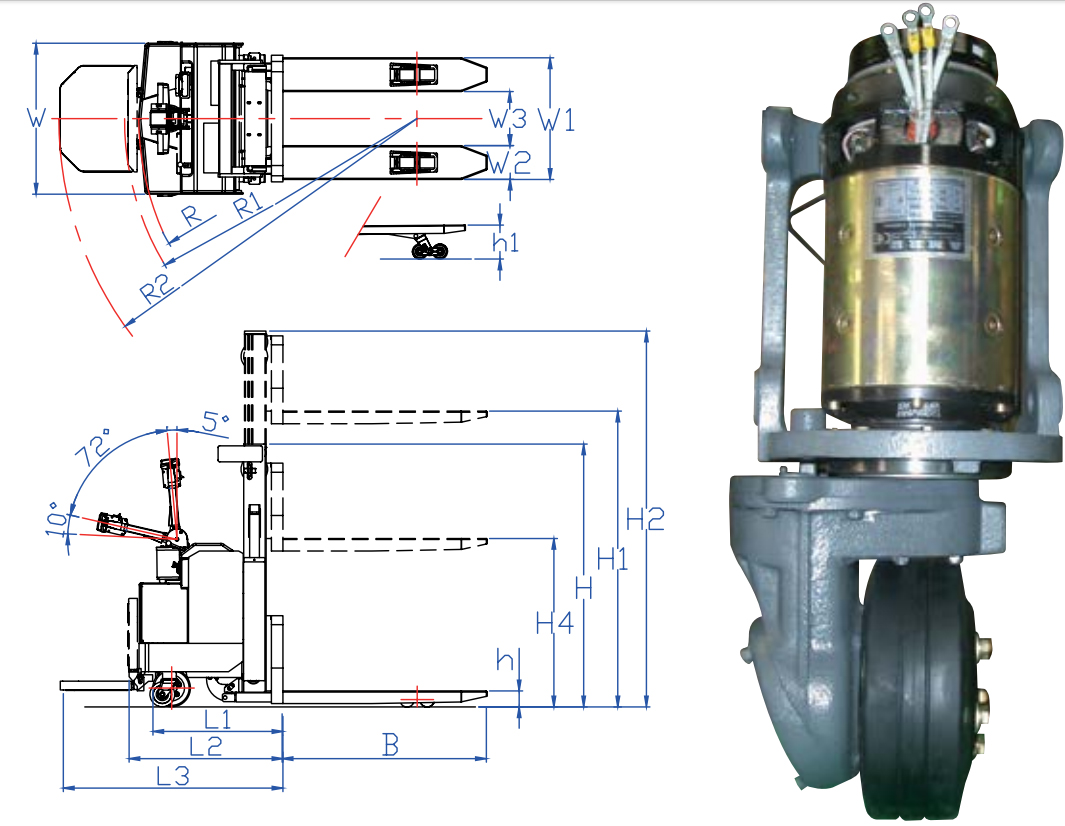

Model(pps)		10	15	18	20
	Item	mm	mm	mm	mm
overall fork width W1		685
Each fork width W2		190	190	190	200
Fork inner width W3		305	305	305	285
Fork length B		1150
overall truck width W		850
Length of body L1 L2 L3		795 855 1235	815 875 1255	815 875 1255	815 875 1255
Turning radius R R1 R2		1620 1680 2060	630 070	630 070	630 070
Min. fork heighth		90
straddle lift h1		None	205	205	205
Each straddle width		150
straddle outer width		540
Straddle inner width		240

Mast Types	Max. fork height(M) mm
	PPS - 1 0/1 5/18			20	PPS-		5/18	20
	2000	2500	3000	3500	4000	4500	5000	5500
Duplex mast telescopic H H2	1540 2500	1790 3000	2040 3500	2290 4000	2540 4500
Duplex mast Hi-Lo	*	*	*	*
Min mast height H	1510	1760	2010	2260	2510
Max. mast height H2	2500	3000	3500	4000	4500
Max. free lift H4	990	1280	1530	1780	2040
Triple stage mast Hi-Lo			*	*
Min mast height H			1510	1760	1860	2010	2160	2360	2510
Max. mast height H2			3580	4080	4580	5080	5580	6080	6580
Max. free lift H4			990	1040	1360	1530	1690	1860	2040

★PPS-10/15/18/20 Specifications★

Item

PPS- 1 0

PPS- 15

PPS- 18

PPS-20

★Lifting

Rated capacity

1000 kg

1500 kg

1800 kg

2000 kg

Load center

600 mm

Max. lifting speed

empty

140 mm/s

1 0 mm/s

170 mm/s

Loaded

110 mm/s

90 mm/s

Max. lowering speed

empty

110 mm/s

210 mm/s

60 mm/s

loaded

300 mm/s

600 mm/s

300 mm/s

★ Driving

Travel speed

empty

6 . 0 km/h

loaded

5 . 0 km/h

Gradeability

empty

16 %

loaded

9 %

9%

★weight of truck

service weight

with battery240Ah

960 kg

1025 kg

1042 kg

1080 kg

without battery

745 kg

810 kg

827 kg

865 kg

★wheels

Fork wheels

dimension

Ø83x9o mm

Ø83x75 mm

quantity(RI/L)

2 2

material

PU

castor wheels

dimension

Ø140x60mm

quantity(R/L)

1/1

2/2

material

PU

Drive wheel

dimension

Ø212x70mm

material

RUBBER / PU-Optional

movement up

15 mm

movement down

30 mm

★ Battery and motors

Battery capacity at 5 hours

discharge rate

180AH/24V

240AH/24V

other options are available

Max. charg

ng current

30A 24V

40A 24V

DC Drive motor power

1 . 5 kW/24V

Lift motor power

2 . 0 kW/24V

3 . 0 kW/24V

speed control principle-number of steps (Electronic Mosfet stepless is standard , 3-speed is optiona.)

stepless

Resistance-3 (option)

★steering & Brake

steering system

steer

ng Arm

steering arc. total

185 degree

Travelling brake

type

Electromagnetic spring pressure

actuated part

Drive wheel

parking brake

type

Electromagnetic spring pressure

actuated part

Drive wheel

1500 Watt Drive Motor provides ample load carrying capacity. Even when fully loaded, the gradient ability still reaches 9%. And special brake system is installed as well. When Steering Arm is operated vertically or horizontally, the microsensor is off automatically and the spring electromagnetic pressure works to brake the truck.

Optional items:

Foldable side protection guards, Longer steering handle,Forged type forks, Stopper for ride-on platform, Removable back rest, -35°C cold storage type, Adjustable straddle lift,Cable control lifting, Non-marking white rubber drive wheel, Vulcollan drive wheel,...etc

Electric MOSFET stepless controller is fitted with sepex drive motor of 1.5kw/24v.
