Advanced Powered Pallet Stacker (AC System) (1 Ton / 1.5 Tons / 1.8 Tons / 2 Tons)

Share to:

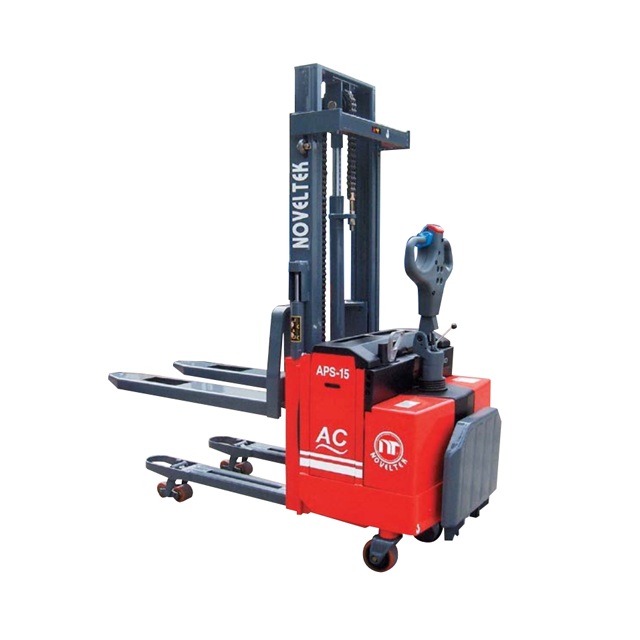

Advanced Powered Pallet Stacker (AC System) (1 Ton / 1.5 Tons / 1.8 Tons / 2 Tons)

5 0 Reviews

· Advanced AC motor truck.
· Suspension drive motor allowing to use the truck on uneven surfaces.
· Without carbon brush, easy maintenance.
· With AC vectorial stepless inverter.
· 30% battery efficiency improvement.
· Quiet, and safe operation.
· Environmental-friendly, durable, reliable truck.
· Electric drive, electric lifting.
· Lead-free PU baked enamel painting.
· Straddle can lift 200mm. This stacker can carry 2 pieces of european
open pallets at same time. It also has higher gradeability.
· Body length is 855mm only.
· Ride-on drive, easy handling.
· It can turn in 2.1 meter wide aisle.
· Max. fork lifting height between 2 meter and 6
meter
· With a slow drive speed switch for duplex mast
HI-LO (3m or above) and triple stage mast HI-LO
(3.5M or above)
· Triple stage, full free lift mast and -35°C cold
storage version...etc. are available as options.

Model:
APS-10/15/18/20 AC

Availability:

Quantity:



Inquire Add to Basket

Product Description

APS-10/15/18/20 Specifications

Item		APS-10	APS-15	APS-18	APS-20
*Lifiting
Rated capacity		1000kg	1500kg	1800kg	2000kg
Load center		600 mm
Max.lifting speed	empty	140 mm/s	156 mm/s	150 mm/s	150 mm/s
	loaded	110 mm/s	100 mm/s	90 mm/s	100 mm/s
Max.lowering speed	empty	110 mm/s	170 mm/s	170 mm/s	60 mm/s
	loaded	570 mm/s	300 mm/s	300 mm/s	300 mm/s
* Driving
Travel speed	empty	6.0 km/h
	loaded	5.5 km/h
Gradeability	empty	16 %	16 %	16 %	16 %
	loaded	9 %	9 %	9 %	9 %
* Weight of truck
Service weight	with battery 240 Ah	998 kg	1025 kg	1042 kg	1080 kg
	without battery	783 kg	810 kg	827 kg	865 kg
* Wheels
Fork wheels	dimension	Ø83x90 mm	Ø83x75 mm	Ø83x75 mm	Ø83x75 mm
	quantity(R/L)	1/1	2/2	2/2	2/2
	material	PU
Castor wheels	dimension	Ø140x60 mm
	quantity(R/L)	1/1
	material	PU
Drive wheel	dimension	Ø212x70 mm
	material	Standard:Rubber/Opt. PU
	movement up	15 mm
	movement down	30 mm
* Battery and motors
Battery capacity at 5 hoursdischarge rate		180AH/24V	240AH/24V	240AH/24V	240AH/24V
Battery capacity at 5 hoursdischarge rate		Other options are available
Max. charging current		30A/24V	40A/24V	40A/24V	40A/24V
Drive motor power(AC)		1.8 kw/24V
Lift motor power		2.0 kw/24V	3.0 kw/24V	3.0 kw/24V	3.0 kw/24V
Invertor	Travelling	AC Stepless
	Lifting	Contactor type
* Steering & Brake
Steering system		Steering Arm
Steering arc. total		185 degree
Travelling brake	type	Electromagnetic spring pressure
	actuated part	Drive wheel
Parking brake	type	Electromagnetic spring pressure
	actuated part	Drive wheel
