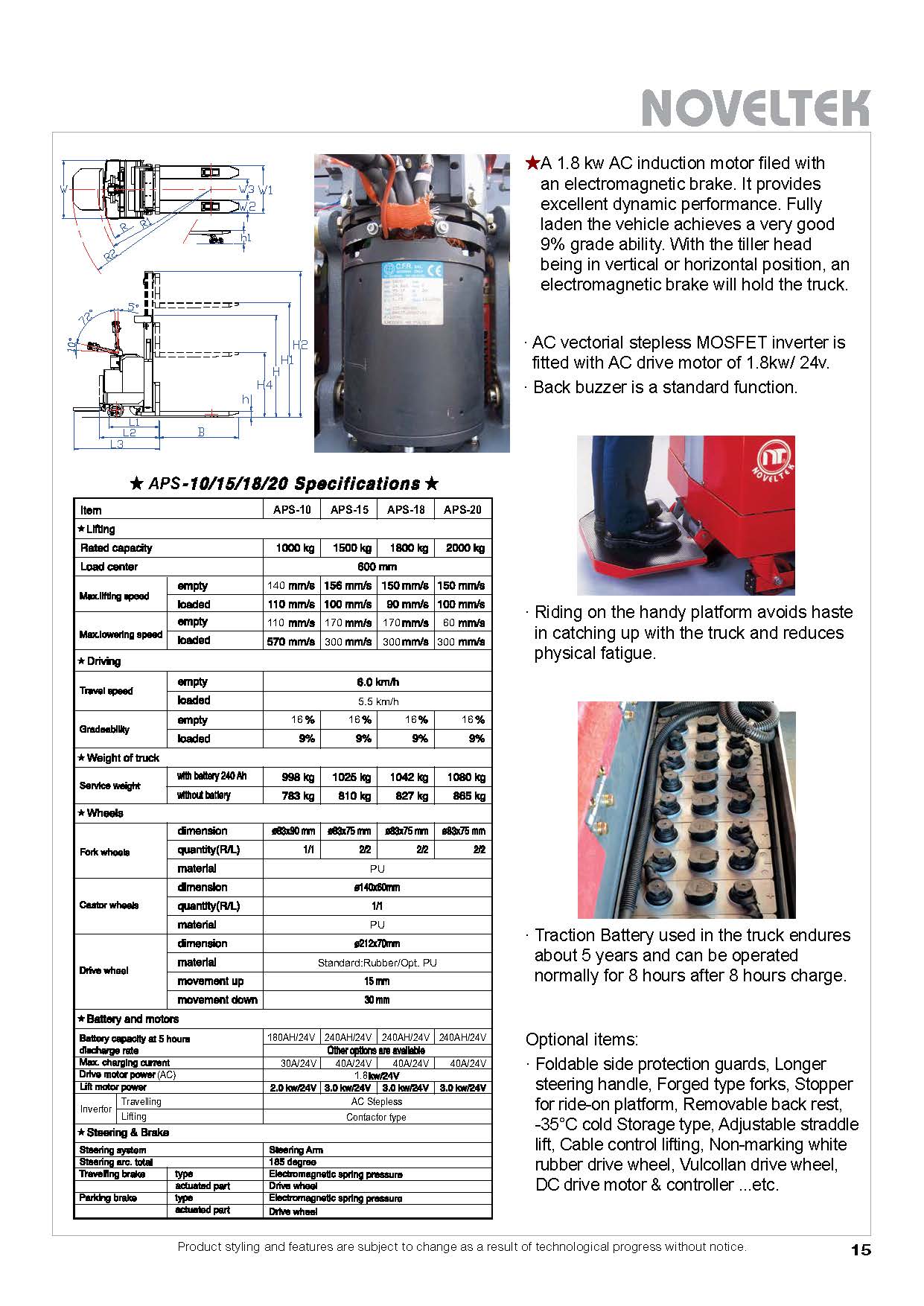

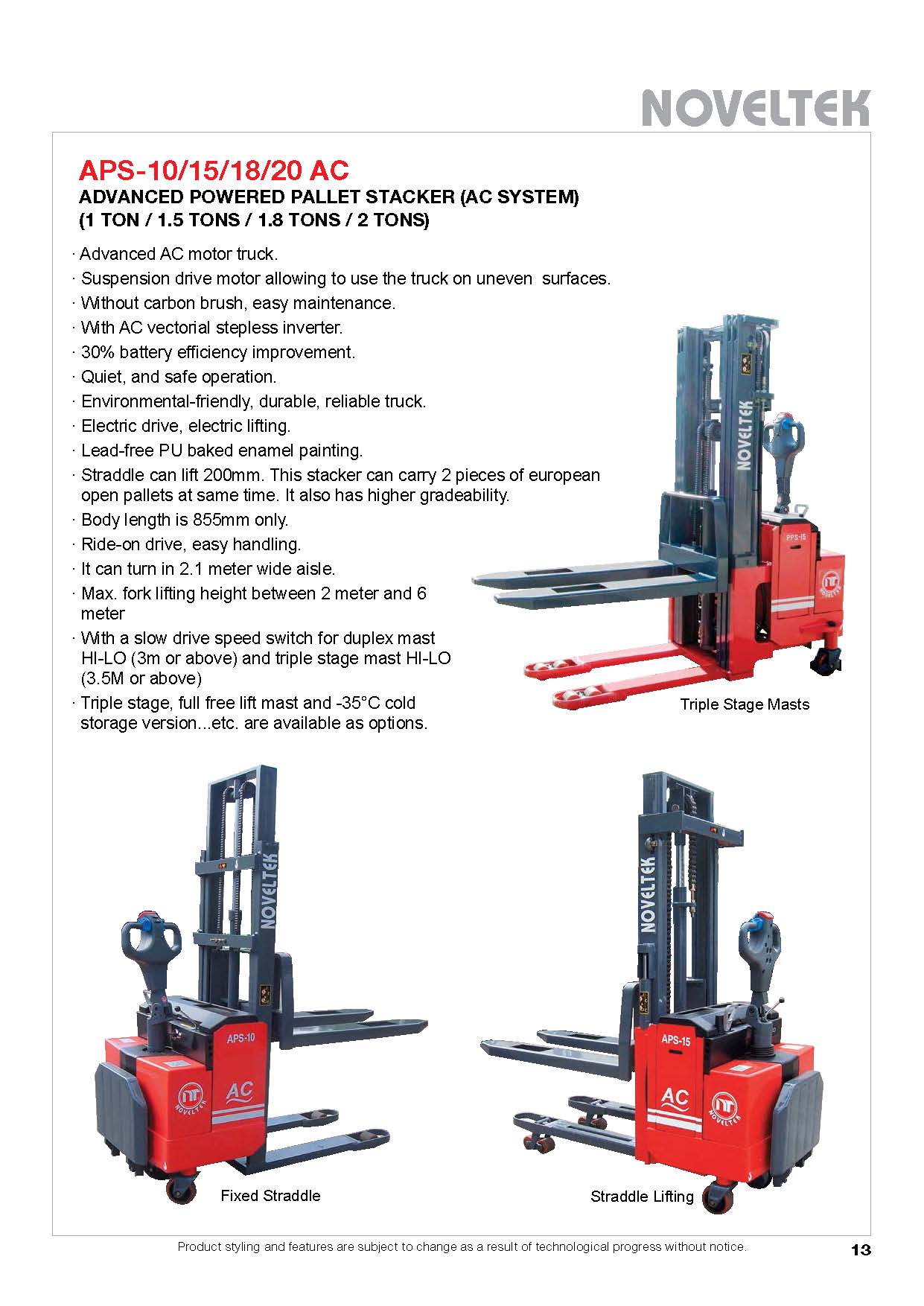

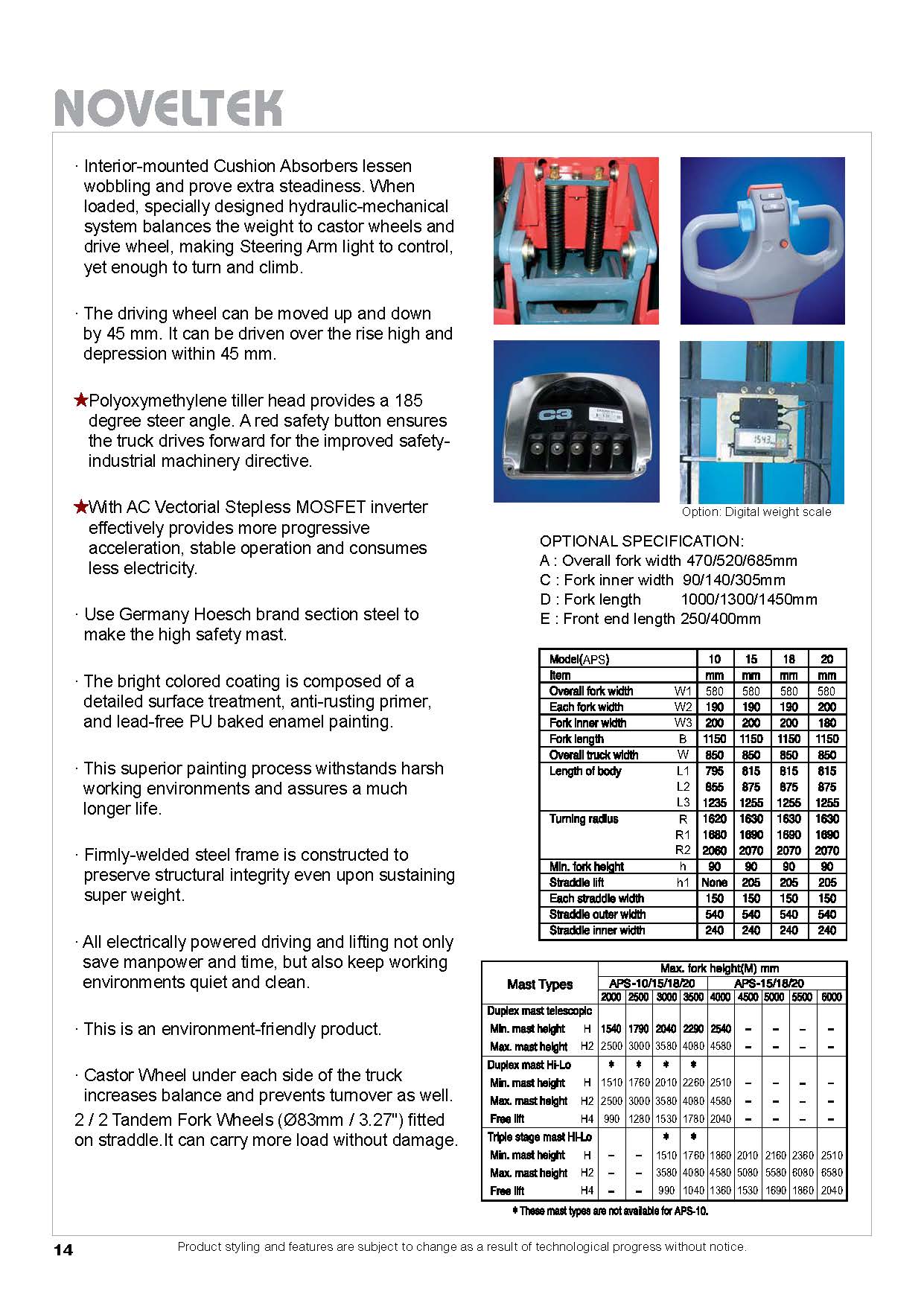

APS-10/15/18/20 AC
| Quantity: | |
|---|---|
| Specification | Description |
|---|---|
| Load Capacity | 1T / 1.5T / 1.8T / 2T |
| Drive Type | Electric AC motor |
| Lifting System | Electric hydraulic |
| Body Length | 855 mm |
| Fork Lift Height | 2 m – 6 m |
| Drive Motor | Suspension design for uneven surfaces |
| Painting | Lead-free PU baked enamel |
| Turning Space | Operates in 2.1-meter aisle |
| Battery Efficiency | ~30% improvement with AC vector inverter |
| Special Mode | Slow-drive switch for high mast models |
| Optional Features | Triple-stage mast, full free lift, cold storage version (-35°C) |
AC Motor Truck Structure
Efficient, brushless AC motor reduces maintenance needs and enhances long-term durability.
Suspension Drive Motor
Maintains traction and stability on uneven flooring conditions, supporting versatile indoor operations.
Energy-Saving Performance
Vector-controlled inverter increases battery efficiency by approximately 30%, extending operational duration.
Quiet & Safe Handling
Low-noise driving experience supports night operations and enclosed building use.
Dual-Pallet Transport Capability
Straddle mechanism offering 200 mm lift allows simultaneous handling of two European open pallets.
Ride-On Operation
Compact body plus ride-on design allows efficient travel even in narrow aisles.
Warehousing and distribution
Retail and supermarket storage rooms
E-commerce fulfillment centers
Beverage and food logistics
Pharmaceutical and medical supply logistics
Cold-chain storage (with optional low-temperature configuration)
Manufacturing material supply lines
Higher Productivity: Electric drive and lift reduce operator fatigue
Space-Efficient: Short 855 mm body allows smooth movement in confined areas
Strong Gradeability: Handles slopes efficiently during indoor logistics routes
Eco-Friendly Build: Lead-free coating and energy-efficient AC system
Stable Lifting: Smooth mast operation from 2 m up to 6 m height
Flexible Configuration: Multiple mast types and cold storage options
AC electric drive motor
Electric hydraulic lifting pump
Reinforced chassis with PU-coated finish
Straddle arms capable of lifting 200 mm
Adjustable forks for pallet compatibility
Ride-on platform with ergonomic controls
Steering system for narrow aisles
Battery pack and intelligent inverter
Industry Expertise
Our engineering team specializes in AC-powered material-handling equipment and continuously enhances structural reliability and operational efficiency.
Technical Innovation
We apply vector-control technology, advanced suspension drive systems, and modular mast designs to support wide application needs.
Quality Assurance
Each Advanced Pallet Stacker undergoes multi-stage inspection to ensure safety, durability, and consistent handling performance.
Flexible Customization
From mast height to wheel configuration and low-temperature options, our manufacturing system supports various custom requests for industrial clients.
A：Four load options are offered: 1T, 1.5T, 1.8T, and 2T.
A：Yes, its compact body and steering system allow smooth turning within a 2.1-meter aisle.
A：The brushless AC design reduces wear and supports long-term maintenance efficiency.
A：Yes, the straddle system can lift two European open pallets simultaneously.
A：A -35°C configuration can be selected for cold-chain environments.
