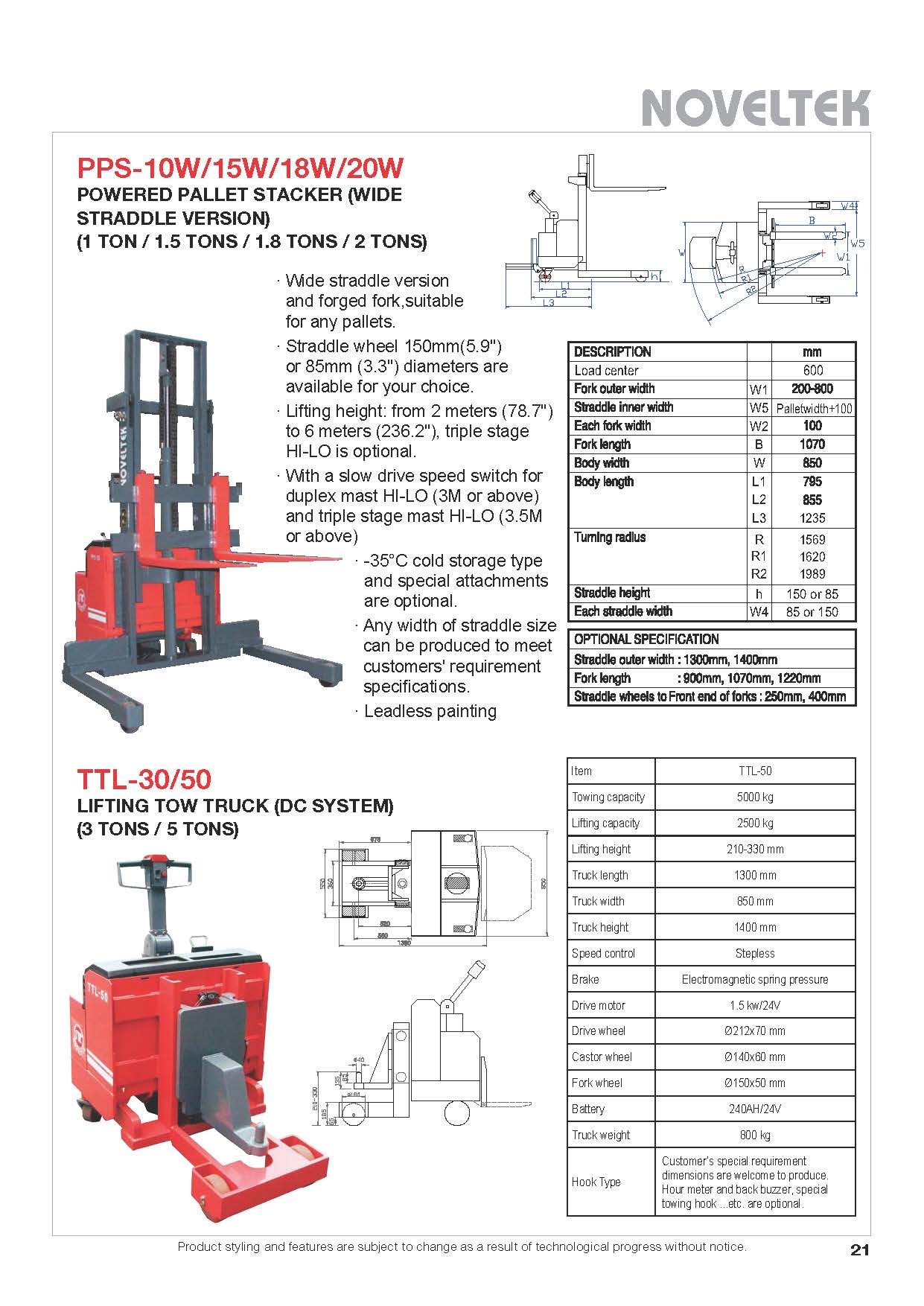

PPS-10/15/18/20
| Quantity: | |
|---|---|

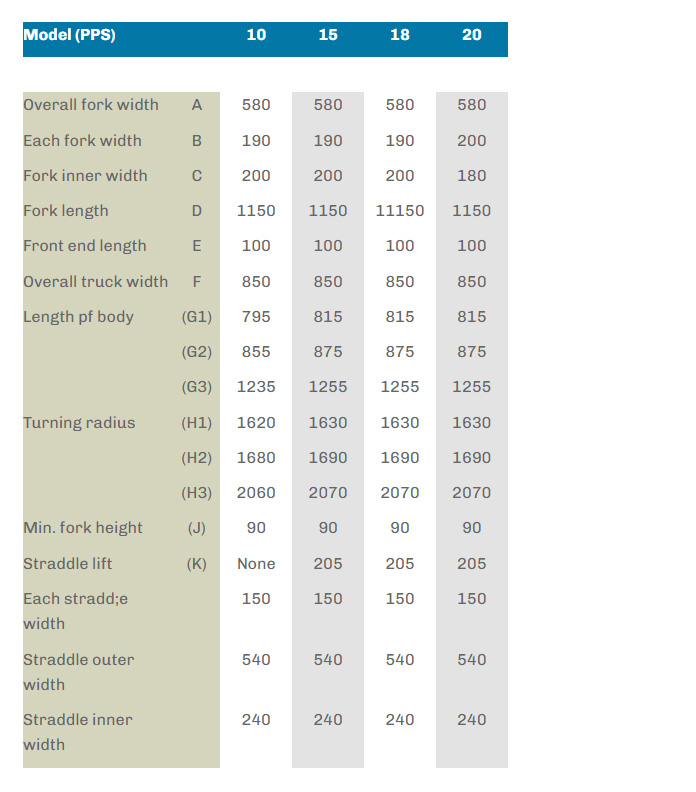

| Item | Specification |
|---|---|
| Model | PPS-10W / 15W / 18W / 20W |
| Load Capacity | 1 ton / 1.5 tons / 1.8 tons / 2 tons |
| Fork Lifting Height | 2 m – 6 m |
| Body Length | 855 mm |
| Turning Aisle | 2.1 m |

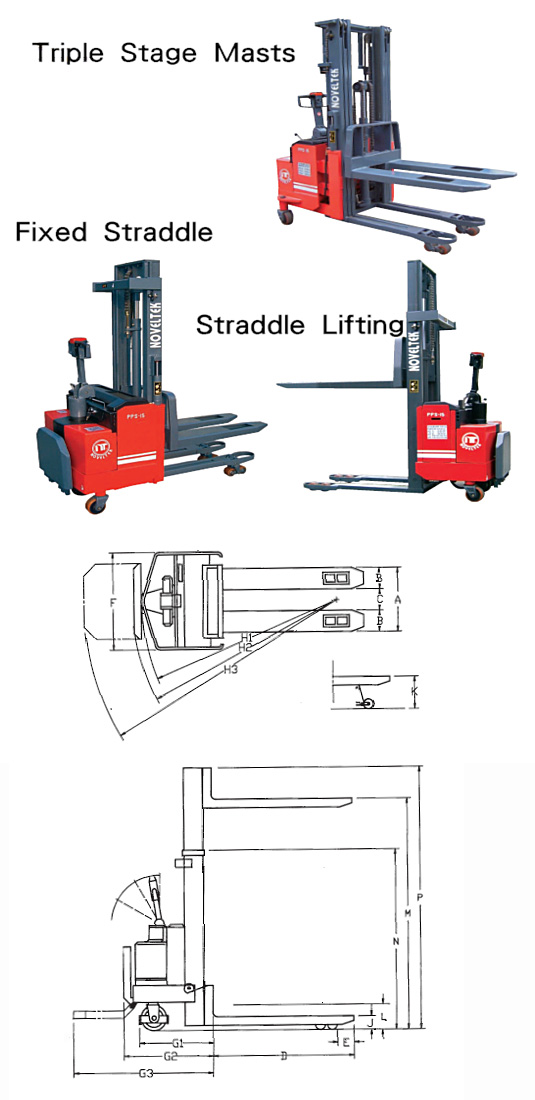

| Mast Options | Triple stage, full free lift, -35°C cold storage version |
| Drive Type | Electric drive, ride-on |
| Coating | Baked enamel |
| Straddle Lift | 200 mm, handles 2 European open pallets simultaneously |
Ride-on drive for easy operation
Compact body for tight aisle maneuvering
Quiet, safe, and pollution-free operation
Electric lifting with straddle capability
High gradeability for inclined surfaces
Durable baked enamel coating
Optional triple-stage mast and cold storage version
Warehouse stacking and logistics
Manufacturing and assembly lines
Distribution centers handling multiple pallets
Cold storage operations (-35°C optional)
Heavy lifting in tight or inclined aisles
Compact design improves warehouse efficiency
Handles two European open pallets at the same time
Ride-on operation reduces operator fatigue
Electric drive ensures smooth and low-maintenance performance
Adaptable with optional masts and attachments for various applications
Electric motor and drive system
Hydraulic lifting system
Straddle fork assembly
Steel chassis with baked enamel coating
Operator platform with control handles
Optional cold storage or triple-stage mast
Over 30 years of manufacturing experience
ISO 9001 and CE certified
High durability and reliability
Customizable options for different industries
Energy-efficient and eco-friendly design
Trusted worldwide in over 38 countries
A: The stacker is available in 1 ton, 1.5 tons, 1.8 tons, and 2 tons models.
A: Yes, it can carry 2 European open pallets simultaneously.
A: Yes, the body can turn in a 2.1-meter wide aisle.
A: Yes, optional -35°C cold storage and triple-stage mast versions are available.
A: Minimal maintenance is needed due to electric drive and durable components.
