Advanced Powered Pallet Stacker (AC System)

Load capacity： 1 TON / 1.5 TONS / 1.8 TONS / 2 TONS

ADVANCED POWERED PALLET STACKER (AC SYSTEM)

• Advanced AC motor truck.

• Suspension drive motor allowing to use the truck on uneven surfaces.

• Without carbon brush, easy maintenance.

• With AC vectorial stepless inverter.

• 30% battery efficiency improvement.

• Quiet, and safe operation.

• Environmental-friendly, durable, reliable truck.

• Electric drive, electric lifting.

• Lead-free PU baked enamel painting.

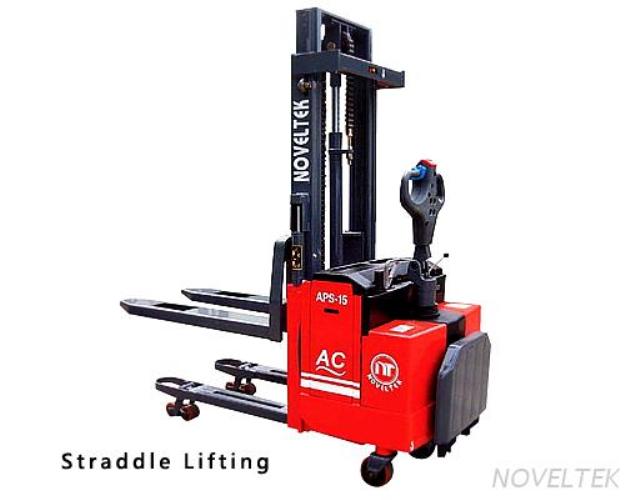

• Straddle can lift 200mm. This stacker can carry 2 pieces of european open pallets at same time. It also has higher gradeability.

• Body length is 855mm only.

• Ride-on drive, easy handling.

• It can turn in 2.1 meter wide aisle.

• Max. fork lifting height between 2 meter and 6 meter

• With a slow drive speed switch for duplex mast HI-LO (3m or above) and triple stage mast HI-LO (3.5M or above)

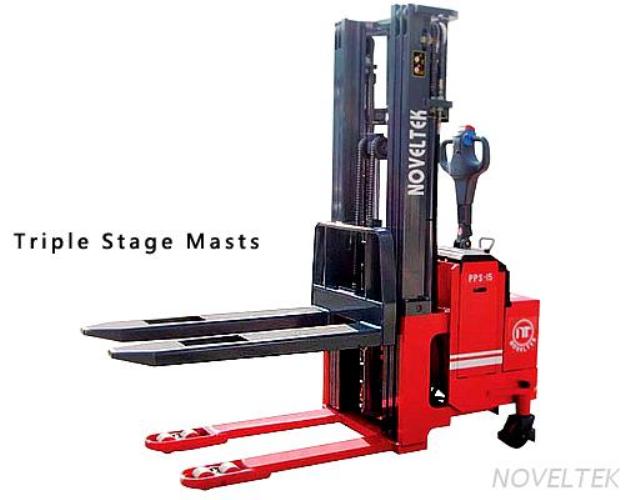

• Triple stage, full free lift mast and -35°C cold storage version...etc. are available as options.
