APS-15/18/20 AC+EPS
| Quantity: | |
|---|---|
Load capacity： 1.5 TONS / 2 TONS

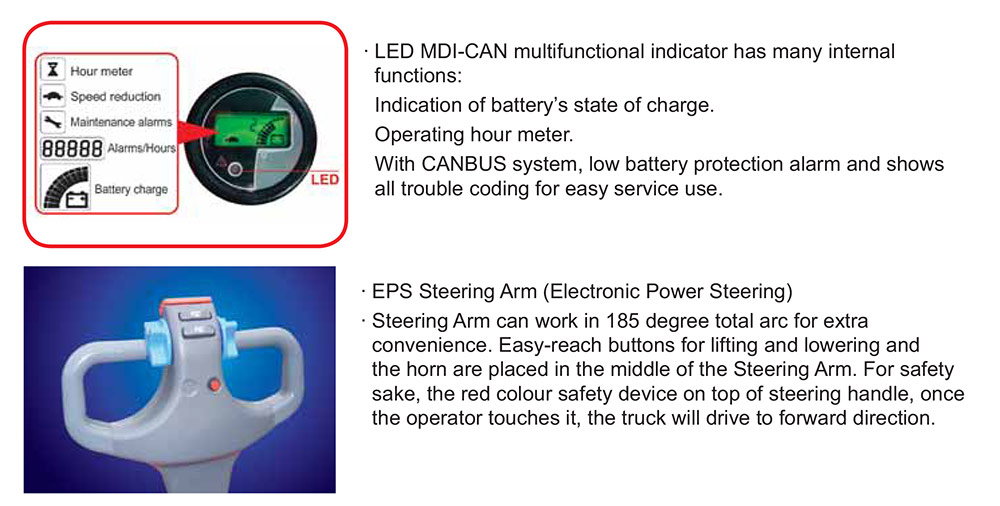

Electronic Power Steering system (EPS system) very easy to drive.
While turning steering, the drive speed lowering down automatically by 50%.
With AC driving motor, it can save electricity efficiently by 30% at least, and carbon brushless equipped for easier maintenance.
Latest AC inverter circuit control system brings stability, power saving, calmness and cleanliness.
Use Germany HOESCH brand section steel to make the high safety mast.
Lead- free PU baked enamel painting.
Max. fork lifting height between 2 meter and 6 meter.
Straddle can lift 205mm. This stacker can carry 2 pieces of European open pallets at the same time. The driving wheel can move up and down by 45mm.
Customization for clients’ requirements.
OPTIONAL SPECIFICATION:
A: Overall fork width 470/ 685mm
C: Fork inner width 90/ 305 mm
D: Fork length 1000/ 1450 mm
E: Front end length 250/ 400 mm
Technical Specifications
Rated Capacity | 1500 kg | 2000 kg |
Load Center | 500 mm | 500 mm |
Fork Dimensions | 40x100x970 mm | 45x100x1070 mm |
Lifting Height | 2000-6000 mm | 2000-6000 mm |
Turning Radius | 1830 mm | 1960 mm |
Battery Capacity | 240Ah (48V) | 300Ah (48V) |
Travel Speed | 12 km/h | 12 km/h |
Gradeability | 18% (loaded) | 17% (loaded) |
Applications of APS-15/20 AC+EPS Powered Stacker
Warehouse Operations: Perfect for narrow aisles and high-density storage areas, the APS-15/20 offers maximum efficiency in confined spaces.
Pallet Handling: With its adjustable forks, it can easily handle Euro pallets, offering a flexible solution for diverse pallet sizes.
Material Handling: Ideal for moving heavy loads across large facilities or between different areas within a warehouse.
Outdoor/Off-road Use: Built with soft solid tires and a durable design, the APS-15/20 is suitable for outdoor environments, such as loading docks or distribution centers.
Why Choose NOVELTEK Powered Stackers?
1.Leading Industry Expertise: With over 30 years of experience in manufacturing material handling equipment, NOVELTEK is a trusted name known for quality and innovation.
2.Global Reach: Our products are exported to over 38 countries, including Japan, Germany, the UK, and the US, ensuring reliability and international customer satisfaction.
3.Customization: NOVELTEK offers tailored solutions to meet the unique needs of your business, whether you need high-lift capabilities or specialized pallet handling.
4.Comprehensive Support: Our dedicated customer service team provides end-to-end support, from consultation to after-sales service, ensuring you have the right equipment for your needs.
For more information or to request a quote for the APS-15/20 Powered Stacker, contact us today. Let NOVELTEK help improve the efficiency and safety of your material handling operations with our advanced electric stacker solutions.
