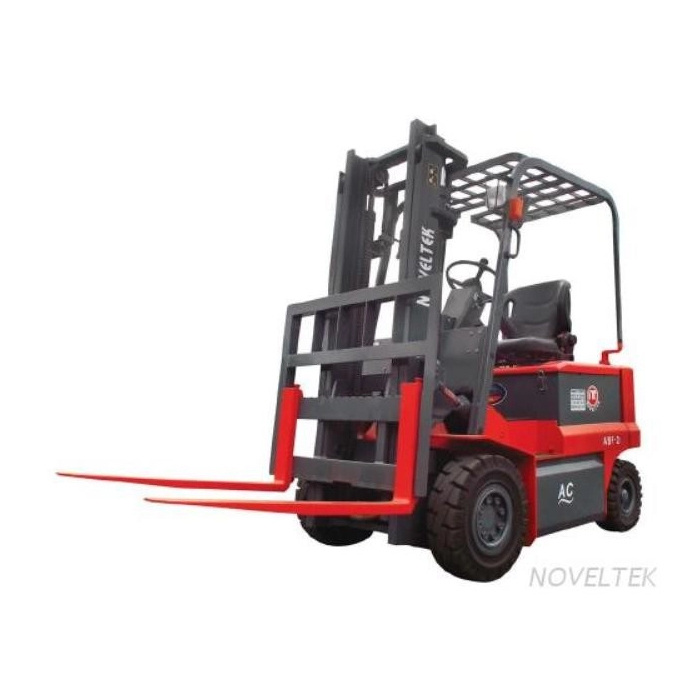

ABF-15/20/25
NOVELTEK
Availability: | |
---|---|
Quantity: | |
Load capacity: 1.5 TONS / 2 TONS / 2.5 TONS
AC stepless inverter
Save electricity efficiently by 30%
Without carbon brush, easy maintenance
No noise
No pollution
Can be turned in a 3.3 meter wide aisle for model ABF-15/20
Soft solid tyres on 4 wheels
Full hydraulic power steering
Max fork lifting height between 2 meters and 6.35 meters
Hydraulic power brake
Mechanical hand parking brake
Lead-free PU baked enamel painting
Triple stage, full free lift mast, -35°C cold storage version, side shift, special attachment clamps, and explosion protection and shaft type forged forks are available as options.
Durable and Safe Design
Robust Construction
The ABF-15/20/25 forklifts feature a steel frame with a thickness exceeding 6 mm, ensuring superior durability for long-term use. A protective overhead guard offers enhanced driver safety, while the soft solid tires provide stability and prevent uneven movement.
Enhanced Operator Safety
Hydraulic Power Brakes: Ensure secure and smooth stopping, even with heavy loads.
Ergonomic Driver Seat: Features an adjustable and cushioned seat with a built-in safety switch and seat belt.
Emergency Stop Switch: Increases safety during critical situations.
Environmental Sustainability
As a battery electric forklift, the ABF series produces zero emissions, making it an eco-friendly alternative to traditional forklifts. Its low noise operation further enhances the working environment, whether used indoors or outdoors.
Technical Specifications
Model Comparison
Specification | ABF-15 | ABF-20 | ABF-25 |
Rated Capacity | 1500 kg | 2000 kg | 2500 kg |
Load Center | 500 mm | 500 mm | 500 mm |
Lifting Height (max) | 3000 mm | 3000 mm | 3000 mm |
Turning Radius | 1830 mm | 1960 mm | 1960 mm |
Min. Intersection Aisle Width | 3660 mm | 3900 mm | 4050 mm |
Overall Length (w/o fork) | 2050 mm | 2180 mm | 2250 mm |
Overall Width | 1170 mm | 1170 mm | 1170 mm |
Battery (48V/5HR) | 400 Ah | 480 Ah | 560 Ah |
Weight (inc. battery) | 2350 kg | 3450 kg | 4030 kg |
Applications
1. Warehouse Operations: The ABF series excels in tight aisle operations, ideal for modern storage facilities.
2. Outdoor Use: As an all-terrain electric forklift, it performs effectively in outdoor environments.
3. Cold Storage: Optional -35°C capability supports industries requiring temperature-controlled equipment.
4. Heavy Lifting: With a maximum load of 2500 kg, it’s suitable for demanding industrial applications.
Why Choose NOVELTEK's Electric Forklift?
Efficiency and Performance
Whether you're looking for a small electric forklift, a standing electric forklift, or a compact electric forklift, the ABF-15/20/25 series delivers unmatched performance. It is also available as a 3-wheel electric forklift for enhanced maneuverability or as a warehouse electric forklift optimized for stacking and storage.
Adaptable to Any Industry
From retail to heavy industrial use, this forklift series supports various applications. Special optional features, such as the cold storage version or explosion-proof design, allow customization to meet specific operational needs.
Globally Trusted Brand
With over 30 years of manufacturing expertise and operations in 38 countries, NOVELTEK is recognized for its commitment to quality and innovation. All forklifts are ISO 9001 and CE-certified, ensuring compliance with the highest safety and quality standards.
