HPT-20/25/30
| Quantity: | |
|---|---|
Key Features and Benefits of HPT-20/25/30 Hand Pallet Truck
High-Quality Hydraulic System for Easy Lifting
The HPT-20/25/30 hand pallet truck is equipped with a top-tier hydraulic lifting mechanism. It provides smooth and effortless lifting with minimal maintenance, even under continuous heavy use. The durable hydraulic pump is designed to withstand thousands of lifting/lowering cycles and is fully sealed to prevent oil leakage.
Overload Safety for Enhanced Protection
The truck is designed with an overload relief valve to ensure safe operation, preventing misuse and damage caused by overloading. This safety feature is critical for maintaining the integrity of both the truck and the cargo, providing peace of mind for operators.
Corrosion-Resistant and Durable Construction
Made from high-strength steel and covered with a corrosion-resistant coating, the HPT-20/25/30 is built to last. Its components, including steer and fork wheels, are designed to withstand the rigors of heavy-duty applications, offering a smooth and reliable operation in all environments. The wheels are covered with polyurethane for improved durability.
Easy Maneuverability and User-Friendly Operation
The hand pallet truck features an ergonomic design with a spring-loaded loop handle, providing a comfortable grip and automatic return to a vertical position. This allows operators to easily handle the load and move it efficiently, even in tight spaces. The truck's design minimizes the effort needed to move goods, increasing productivity.
Heavy Duty and Long-Lasting Performance
The HPT-20/25/30 is engineered to handle heavy loads with ease, thanks to its one-piece "C"-channel formed steel fork. This design enhances the fork's strength and ensures the truck can carry more weight without bending. Additionally, ductile iron castings at pivotal points make the truck even more durable, while dual wheel sets are available for additional load support.
Optimal for Global Export
Every 6 units of the HPT-20/25/30 are packaged on a wooden pallet for safe and efficient shipping worldwide. The truck also includes an entry roller at the front of each fork, making it easy to move over uneven surfaces.

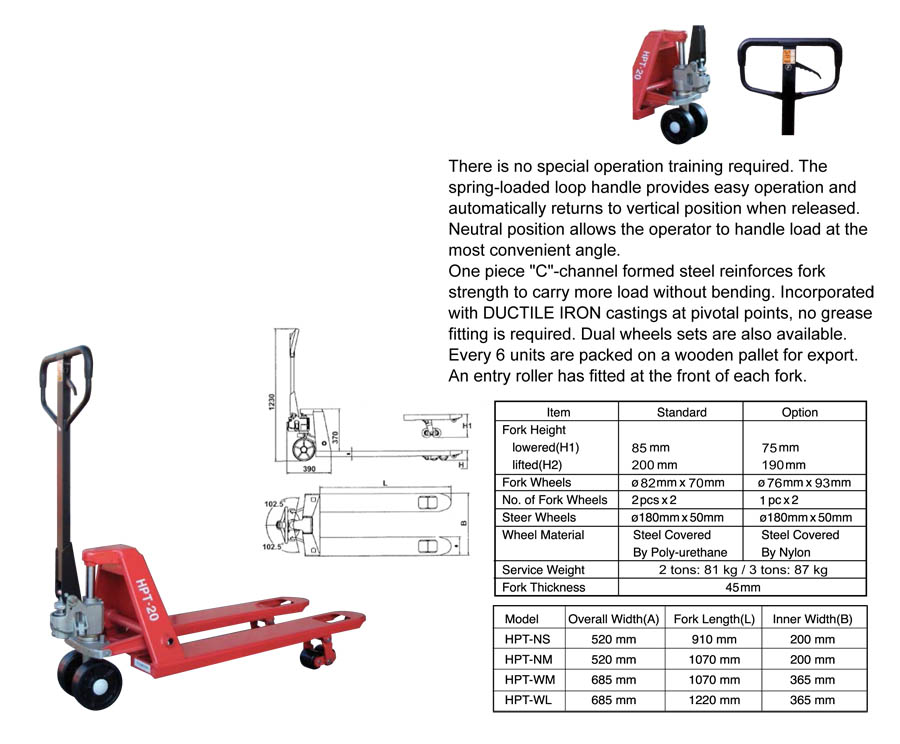

Technical Specifications
Item | Standard | Option |
Fork Height (H1) | 85 mm | 75 mm |
Lifted (H2) | 200 mm | 190 mm |
Fork Wheels | Ø82mm x 70mm | Ø76mm x 93mm |
No. of Fork Wheels | 2 pcs x 2 | 1 pc x 2 |
Steer Wheels | Ø180mm x 50mm | Ø180mm x 50mm |
Wheel Material | Steel Covered | Nylon |
Service Weight | 2 Tons: 81 kg | 3 Tons: 87 kg |
Fork Thickness | 45 mm | 45 mm |
Product Models Available
Model | Overall Width (A) | Fork Length (L) | Inner Width (B) |
HPT-NS | 520 mm | 910 mm | 200 mm |
HPT-WM | 685 mm | 1070 mm | 365 mm |
HPT-WL | 685 mm | 1220 mm | 365 mm |
About NOVELTEK
NOVELTEK, established in 1990, is a leading Taiwanese manufacturer specializing in powered and manual material handling equipment. Our products, including hand pallet trucks, are trusted worldwide in over 38 countries. With a strong commitment to quality and customer satisfaction, NOVELTEK ensures all products are CE and ISO9001 certified.
Our dedication to research and development drives us to continually improve our designs, providing innovative solutions for your material handling needs. With a solid market presence and an emphasis on excellent customer service, NOVELTEK is your trusted partner for efficient and safe material handling.
Request a Quote Today!
If you're looking for a reliable, high-performance hand pallet truck, the HPT-20/25/30 is the ideal choice. Contact us now for a custom quote or to discuss your specific material handling needs. Let NOVELTEK help you increase efficiency, reduce costs, and enhance safety in your operations.
