ART-10/15/20 AC+EPS
| Quantity: | |
|---|---|
Load capacity： 1 TON / 1.5 TONS / 2.0 TONS
With EPS (Electronic Power Steering) system, very easy to drive.
Mast reach electric stacker
Advanced AC motor product
Without carbon brush, easy maintenance
Save electricity efficiently by 30%
FRP body cover and battery cover
Lead-free PU baked enamel painting
Polyoxymethylene Steering Arm

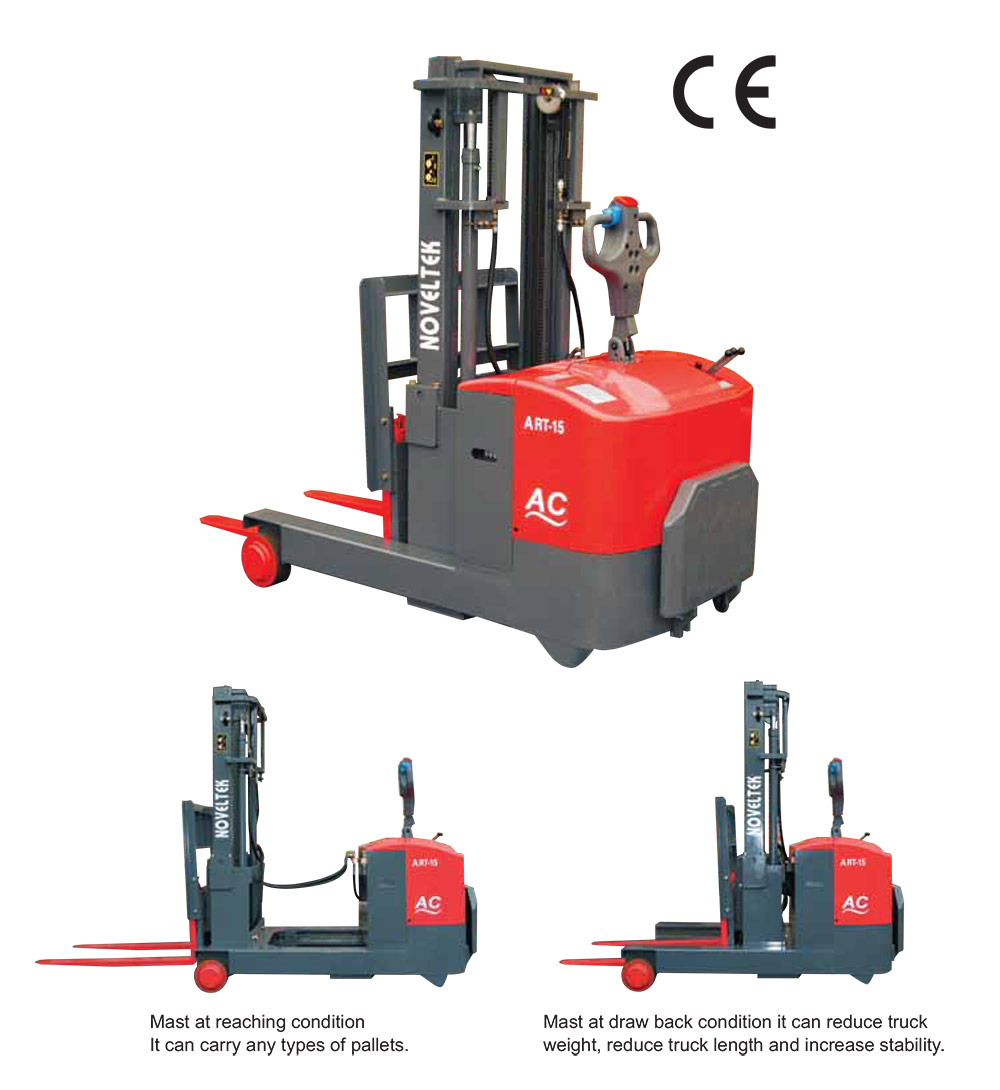

Mast draw back can reduce truck weight, reduce truck length and increase stability
With a slow drive speed switch for duplex mast HI-LO (3M or above) and triple stage mast HI-LO (3.5M or above)
No pollution, quiet, safety, durable and reliable
Easy change battery by side move design.
Optional items: -35°C cold storage version, foldable side protection guards, side shift, battery change table, shaft type forks, crane...etc. are available as options

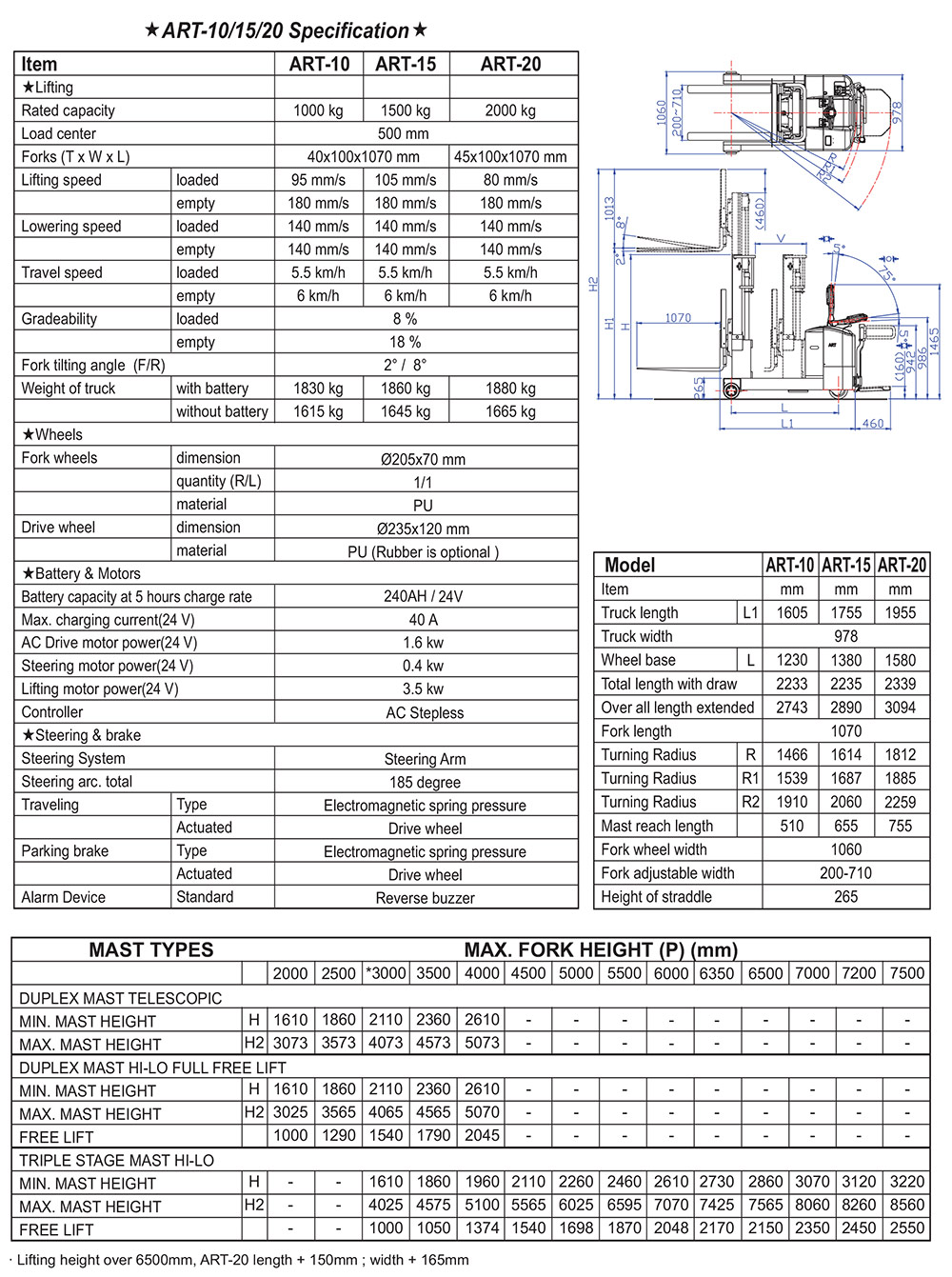

1. Rated Capacity and Load Center
Model | Rated Capacity | Load Center |
ART-10 | 1,000 kg (2,200 lbs) | 500 mm |
ART-15 | 1,500 kg (3,300 lbs) | 500 mm |
ART-20 | 2,000 kg (4,400 lbs) | 500 mm |
These capacities ensure that the ART series can handle a wide variety of loads, from light to heavy-duty lifting, suitable for both warehouse electric forklift and narrow aisle electric forklift tasks.
2. Fork Dimensions and Lifting Capacity
Fork Dimensions (WxLxT) | Lifting Speed (Loaded) | Lifting Speed (Empty) | Lowering Speed |
45 x 100 x 1070 mm | 80 mm/s (ART-10/ART-15) | 140 mm/s (ART-20) | 140 mm/s |
180 mm/s | 180 mm/s |
The lifting speed and lowering speed optimize operational efficiency, reducing cycle times and increasing throughput in high-efficiency environments such as warehouses and distribution centers.
3. Travel and Gradeability
Model | Travel Speed (Loaded) | Travel Speed (Empty) | Gradeability (Loaded) | Gradeability (Empty) |
ART-10 | 5.5 km/h | 6 km/h | 18% | 18% |
ART-15 | 5.5 km/h | 6 km/h | 18% | 18% |
ART-20 | 6 km/h | 6 km/h | 18% | 18% |
These travel speeds and gradeability figures make the ART series an excellent choice for both indoor and outdoor applications.
4. Dimensions and Turning Radius
Model | Truck Length | Truck Width | Wheelbase | Turning Radius |
ART-10 | 1,730 mm | 1,230 mm | 1,530 mm | 1,466 mm |
ART-15 | 1,780 mm | 1,380 mm | 1,730 mm | 1,616 mm |
ART-20 | 1,880 mm | 1,580 mm | 1,830 mm | 1,812 mm |
The compact dimensions of the ART series make it suitable for navigating narrow aisles and tight spaces, while the turning radius provides superior maneuverability.
5. Wheels and Materials
Component | Fork Wheels (Dimension) | Drive Wheel (Dimension) | Material |
Fork Wheels | Ø205 x 70 mm | Ø235 x 120 mm | PU |
Drive Wheel | PU (Rubber optional) |
The PU wheels ensure a smooth and durable ride, suitable for both indoor and outdoor use. These wheels are designed to minimize wear and tear, even in harsh environments.

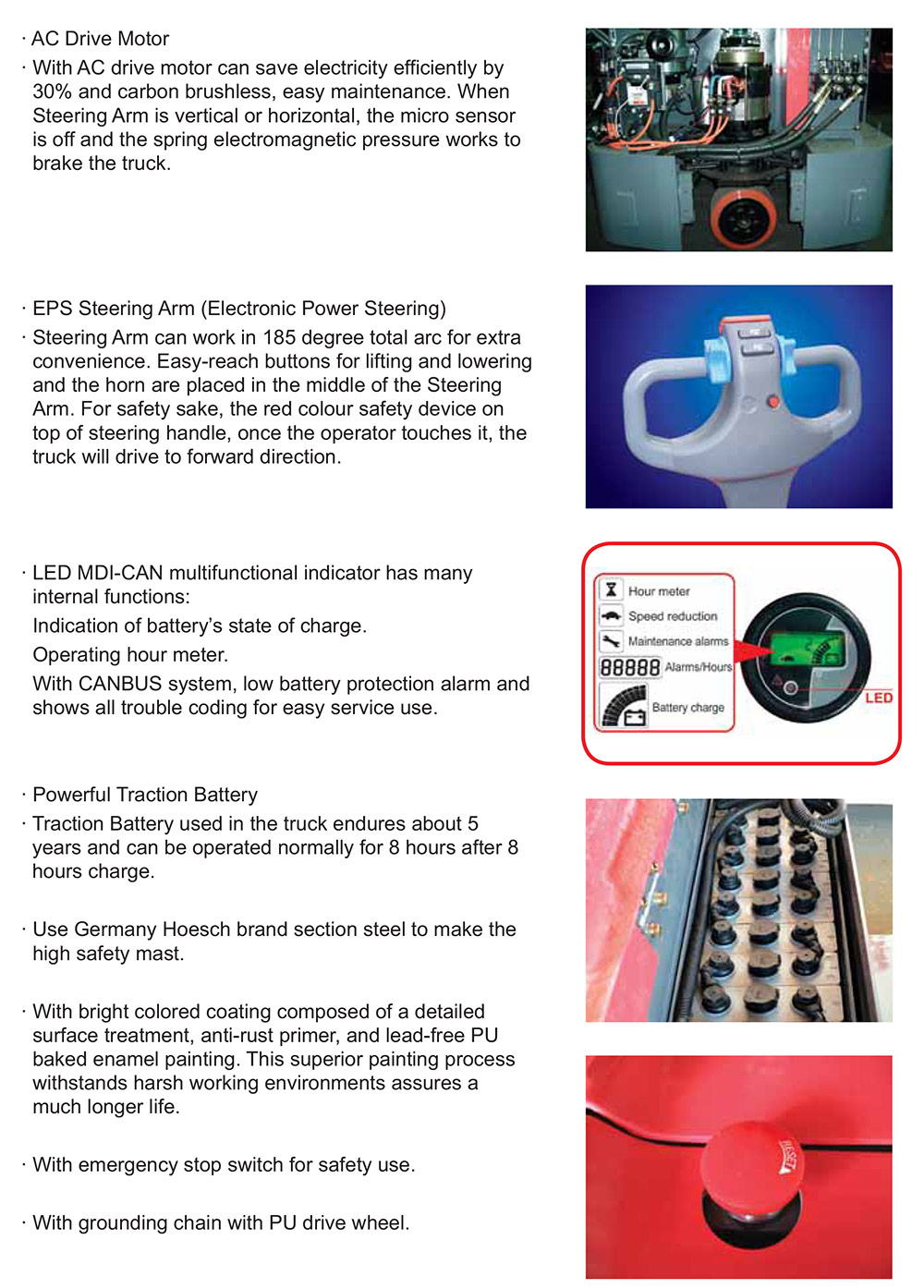

Drive Motor and Battery Specifications
6. AC Drive Motor Performance
Motor Type | Power (24V) |
AC Drive Motor | 1.5 kW |
Steering Motor | 0.4 kW |
Lifting Motor | 3.5 kW |
With AC drive motor technology, the ART series is able to deliver exceptional power and torque for both light and heavy lifting applications. The motors also reduce maintenance costs by eliminating the need for carbon brushes.
7. Battery Capacity and Charging
Battery Type | Capacity | Max Charging Current | Charging Rate (5 hours) |
Traction Battery | 240 Ah / 2V | 40A | 5 hours |
The battery options allow the forklift to run efficiently for up to 8 hours on a single charge, with the fast charge capability ensuring that the forklift is ready to go in just 5 hours.
Steering and Safety Features
8. Steering System
Component | Description |
Steering Arm | Provides 185° arc of movement |
Steering System | Electromagnetic spring pressure |
Parking Brake | Electromagnetic spring pressure |
The EPS system provides easy maneuverability for the operator, while the electromagnetic spring pressure brake ensures reliable and secure stopping.
9. Safety and Alarm Devices
Safety Device | Description |
Reverse Alarm | Standard on all models |
Emergency Stop Switch | Included for quick shutdown |
Safety is a top priority, and features such as the reverse buzzer and emergency stop ensure that the operator is always protected in various operating conditions.
Mast Types and Lifting Heights
The ART series forklifts are available with different mast types to suit various material handling needs, including duplex mast, telescopic mast, and triple stage mast options. The maximum lifting height can range from 2,000 mm to 7,500 mm, providing flexibility for both high and low-clearance areas.
10. Mast Types and Heights
Mast Type | Max Fork Height (mm) | Free Lift (mm) |
Duplex Mast | 2,000 mm to 6,500 mm | 1,610 mm |
Triple Stage Mast | 2,500 mm to 7,500 mm | 2,000 mm |
The adjustable mast height ensures that the ART series can meet the needs of various applications, whether it's for high-level racking or low-level stacking.
The ART Series Electric Forklifts from NOVELTEK provide top-tier performance, reliability, and versatility for a wide range of material handling tasks. Whether you need a mini electric forklift for tight spaces, a 3-ton electric forklift for heavy-duty applications, or an electric reach forklift for high stacking, the ART series is up to the task.
With features such as AC motors, EPS steering, and customizable battery options, these forklifts are built to improve your operational efficiency and reduce maintenance costs. Choose the ART series for your next forklift investment and experience the power of NOVELTEK’s advanced material handling solutions.
