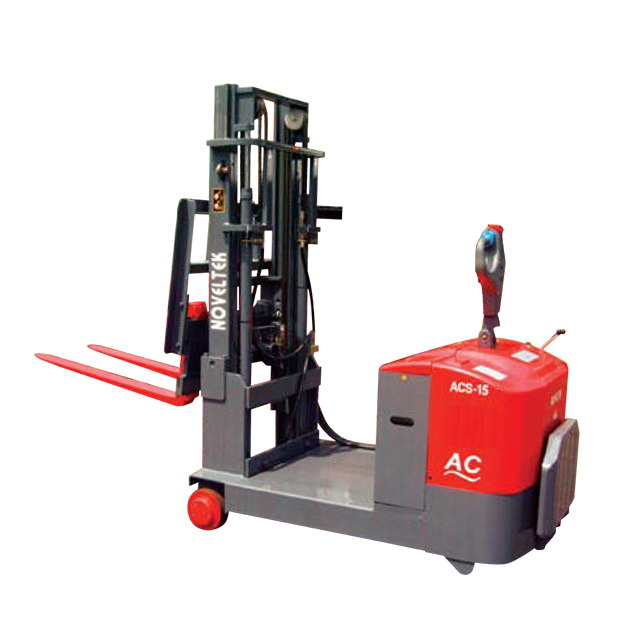

ACS-08/10/15 AC + EPS
| Quantity: | |
|---|---|
Load capacity： 800KG / 1.0TON / 1.5TONS
ADVANCED COUNTERBALANCED WALKIE STACKER (AC SYSTEM)
Electronic Power Steering system (EPS system) very easy to drive
Advanced AC motor product
Without carbon brush, reduce service cost
Save electricity efficiently by 30%
FRP body cover and battery cover
Lead-free PU baked enamel coating
Polyoxymethylene Steering Arm
No pollution, quiet, safety, durable and reliable
Adjustable forged forks suitable for any pallets
Use Germany Hoesch brand section steel to make the high safety mast.
It can be operated in 2.7 meter width aisle for ACS-08/10
Back buzzer is a standard function
Max. fork lifting height between 2 meter and 6 meter
With a slow drive speed switch for duplex mast HI-LO (3m or above) and triple stage mast HI-LO (3.5M or above)
With grounding chain with PU drive wheel.
Easy change battery by side move design.
Optional items:
Triple stage, full free lift mast, -35°C cold storage version, foldable side protection guards, shaft type forks, side shift, battery change table...etc. are available as options

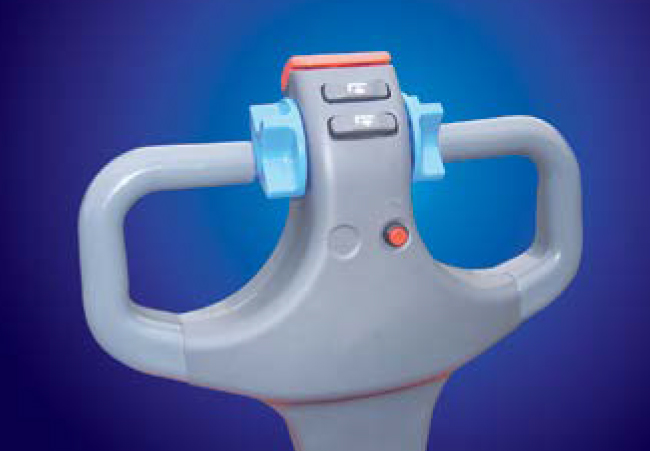

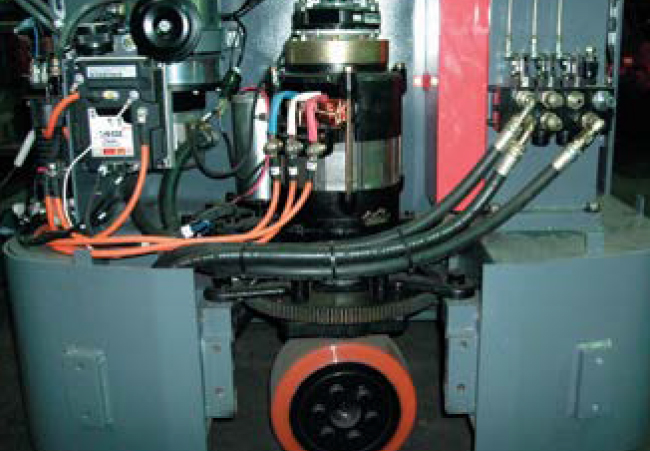

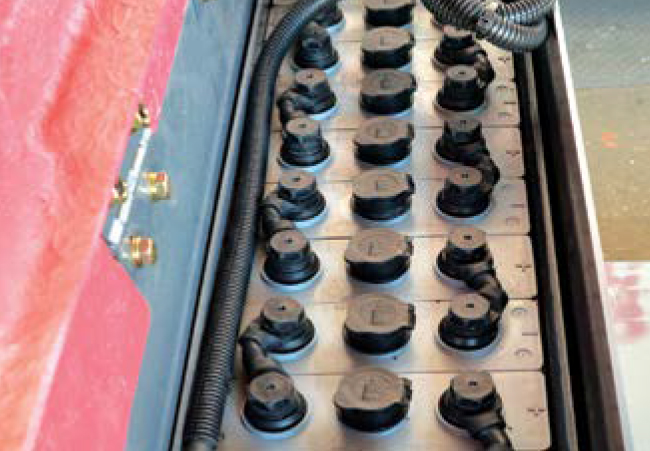

 Powerful Traction Battery |  EPS Steering Arm |  AC Drive motor |

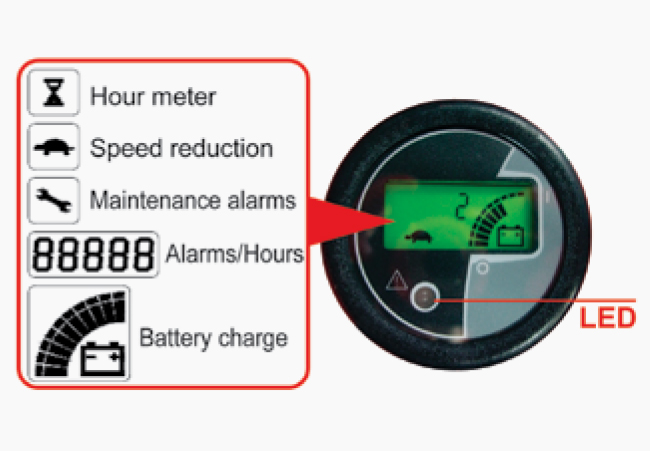

LED MDI-CAN multifunctional indicator |
ACS-08/10/15 Specification
Item Model | Unit | ACS-08 | ACS-10 | ACS-15 | |
Loading | |||||
Capacity | kg | 800 | 1000 | 1500 | |
Load center | mm | 500 | |||
Fork length (TX W X L) | mm | 40×100×1070 | 45×100 × 1070 | ||
Lifting speed | empty | mm/s | 130 | 130 | 180 |
loaded | mm/s | 80 | 80 | 105 | |
Lowering speed | empty | mm/s | 152 | 152 | 140 |
loaded | mm/s | 160 | 160 | 140 | |
Travel speed | empty | km/h | 5.5 | ||
loaded | km/h | 6 | |||
Gradeability | empty | % | 9 | ||
loaded | % | 18 | |||
Fork tilting (F/R) | 3〫/ 10〫 | 3〫/ 10〫 | 2〫/ 8〫 | ||
Weight | without battery | kg | 1400 | 1684 | 1800 |
with battery | kg | 1185 | 1469 | 2015 | |
Fork wheels | dimension | mm | Ø205×70 | Ø205×70 | Ø205×70 |
quantity | (L/R) | 2/2 | 2/2 | 2/2 | |
material | PU | ||||
Drive wheel | dimension | mm | Ø235×120 | Ø235×120 | Ø235×120 |
material | Rubber (PU is optional) | ||||
Battery（24V） | Ah/5HR | 240 | 240 | 240 | |
Max. charging current（24V） | A | 40 | 40 | 40 | |
Motor Power （24V） | AC Drive | kW | 1.6 | ||
Steering | kW | 0.4 | |||
Lifting | kW | 2.5 | 2.5 | 3.5 | |
Inverter | AC Drive | AC Stepless | |||
Steering | Microcontroller | ||||
Steering & brake | |||||
Steering Arm | Lifting/Lowering | Solenoid Valve Button | Hydraulic | ||
Tilting | Solenoid Valve Button | Hydraulic | |||
Steering Arm | Steering Arm | ||||
Steering arc.total | 30° | ||||
Parking brake | Type | Electromagnetic spring pressure | |||
Actuated | Drive wheel | ||||
Alarm Device | Reverse anti-collusion button Emergency switch off button Dual headlight | ||||

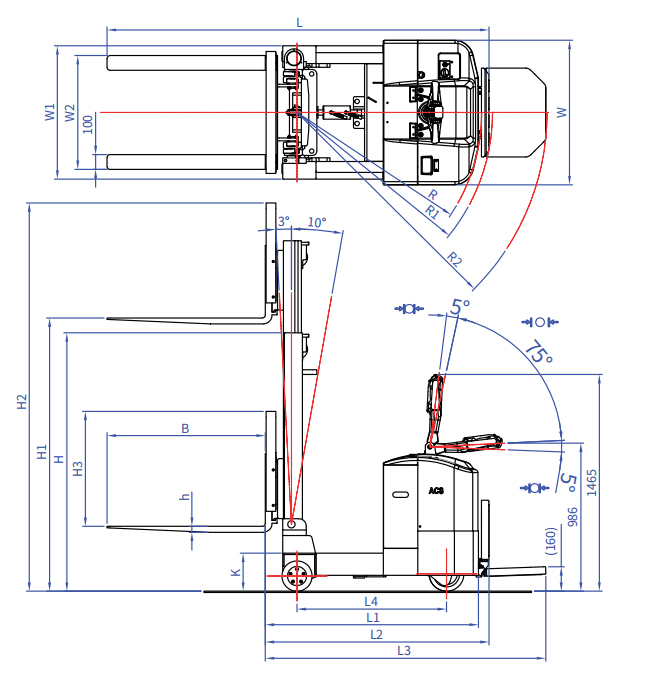

Item | Unit | ACS-08 | ACS-10 | ACS-15 | |
Truck length (With forklift & W/O pedal) | L | mm | 2585 | 2705 | 3080 |
Truck length (W/O forklift &pedal) | L1 | mm | 1442 | 1562 | 1935 |
Truck length (W/O forklift &pedal) | L2 | mm | 1515 | 1635 | 2010 |
Truck length (With pedal &W/O forklift) | L3 | mm | 1900 | 2020 | 2400 |
Wheel base | L4 | mm | 1011 | 1131 | 1465 |
Truck width | W | mm | 978 | ||
Front wheel width | W1 | Mm | 902 | 902 | 1060 |
Min Turing Radius (without pedal) | R | mm | 1254 | 1368 | 1697 |
Min Turing Radius (when pedal) | R1 | mm | 1323 | 1441 | 1769 |
Max Turing Radius | R2 | mm | 1692 | 1811 | 2143 |
Height of Shelves | H3 | mm | 780 | 1015 | |
Fork outer width | W2 | mm | 200~770 | ||
Height of straddle | K | mm | 257 | 265 | |
Height of steering arm | Mm | 1465 | |||
MAST TYPES | H1 Loading Heighy (mm) | ||||||||
ACS-08 / ACS-10 | ACS-15 | ||||||||
H | 2000 | 2500* | 3000 | 3500 | 2000 | 2500* | 3000 | 3500 | |
DUPLEX MAST TELESCOPIC | |||||||||
MIN MAST HEIGHT | H | 1500 | 1750 | 2000 | 2250 | 1610 | 1860 | 2110 | 2360 |
MAX MAST HEIGHY | H2 | 2825 | 3325 | 3825 | 4325 | 3060 | 3560 | 4060 | 4560 |
DUPLEX MAST HI-LO FULL FREE LIFT | |||||||||
MIN MAST HEIGHT | H | 1610 | 1860 | 2110 | 2360 | ||||
MAX MAST HEIGHY | H2 | 3008 | 3548 | 4048 | 4548 | ||||
MAX FREE LIFT | 995 | 1285 | 1535 | 1785 | |||||
