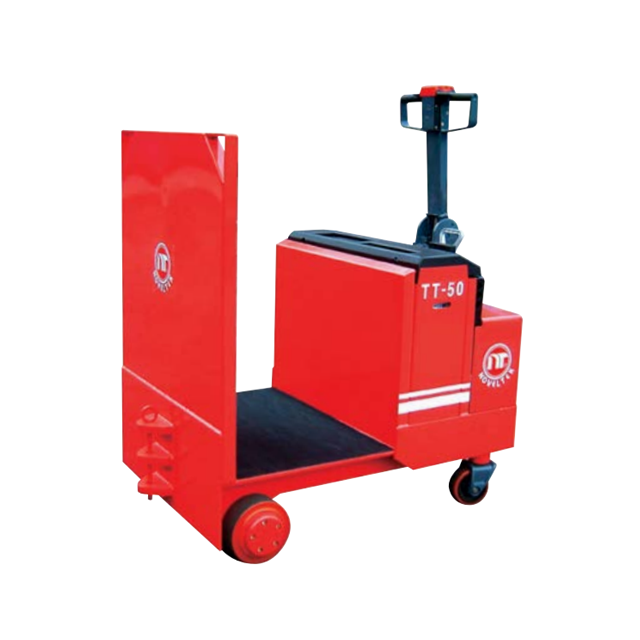

Tow Truck(5 Tons, 11000lb)

5 0 Reviews

· The driver operates in the center of truck.
· Safety and convenience.
· Turning radius is very small. The operation is convenient.
· Tow capacity is powerful and can drag 5 tons(11000 lb.) lorry on normal flat floor.
· It can tow 3 tons lorry over ramp.
· Seat is an optional item.
· Lead-free PU baked enamel painting

Model:
TT-50

Availability:

Quantity:



Inquire Add to Basket

Product Description

Towing capacity	5000 kg(at flat floor)
	3000 kg(with 10% gradeability)
Max. Travel speed	empty	6 .0 km/h
	loaded	3.0 km/h
Truck weight	688 kg(with battery)
Battery	240AH/24v(traction) other options are available
Drive wheel(Front)	Ø212x70 mm(solid tyre)
Load wheelsRear)	Ø205x70 mmx2pcs(solid pu tyres)
Drive Motor	1 . 5KW/24V
charger	220v/40A(microprocess)
steering	steering arm 185ARC
Electric control	Electronic mosfet stepless is optional 3 speed is standard .
Electric cut off	emergency cut-off handle. microprocess charger cut-off.
seat	stand-on is standard. seat is option.
Brake	electromagntic spring pressure
Instrument	horn , battery discharge indicator.
HooK	pin type
Main Dimension	1190(L)X850(W)X1460(H)mm
customer ' S Special requirement dimensions are welcome to produce. Hour meter is optional.
