SPS-10/12/15/10W/12W/15W
| Quantity: | |
|---|---|

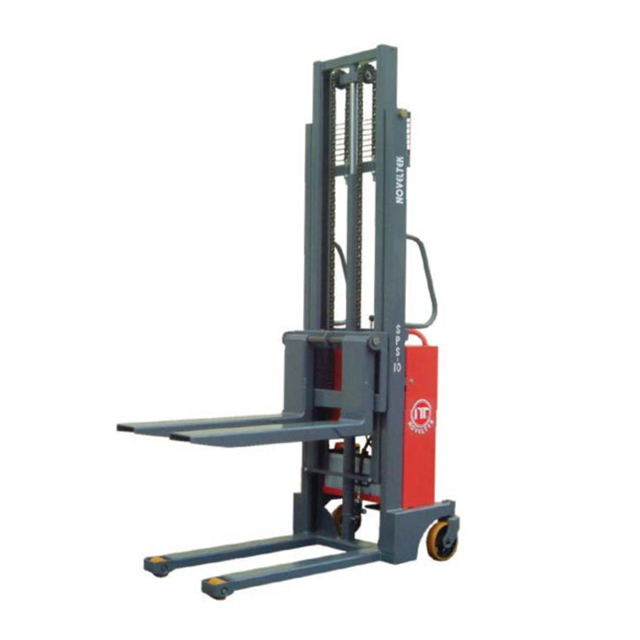

The SPS series of powered lifting pallet stackers are designed for efficient, manual operation in industrial settings. With a lifting capacity of up to 1500kg and multiple options for straddle widths, fork lengths, and lift heights, these stackers ensure flexibility, power, and safety for all your material handling tasks.
Powerful and Efficient
Lifting Capacity: 1000kg (2200lbs) to 1500kg (3307lbs) depending on model.
Lifting Motor: 1.5kW hydraulic motor for smooth and powerful lifting. Ideal for handling pallets in warehouses and factories.
Fork Length: 900mm (35.43") as standard, with customizable lengths up to 3500mm (137.8"), enabling versatility in various storage and handling environments.
Highly Maneuverable and Customizable
Straddle Widths: Available in different widths (1240mm, 1140mm, etc.), allowing customization based on your specific pallet size and storage needs.
Adjustable Fork Width: Each model offers customizable fork widths to adapt to the varying sizes of pallets, with a minimum width of 95mm for better handling in tight spaces.
Compact and Flexible Design
Mast Types: Telescopic mast for efficient vertical lifting in narrow aisles. The maximum fork height reaches up to 2500mm (98.4"), with models available for higher lifts up to 3500mm (137.8").
Narrow Design: The SPS series is perfect for spaces where maneuverability is crucial. It has a narrow width of 770mm (30.31") for easy navigation around storage units and aisles.
Safe and Reliable Operation
Battery: 135Ah/12V battery (build-in), offering long-lasting operation and reducing downtime. An optional charger of 110V/12V-12A is also available.
Braking System: The stacker is equipped with a robust braking system that ensures safe operation even under heavy loads.
Pedestrian Operated: Designed as a walkie stacker, it’s easy to operate and maneuver manually while benefiting from the powered lifting function.
Versatile Application
Wide Straddle Version (SPS-10W, SPS-12W, SPS-15W): Ideal for handling closed pallets, these versions feature a wide straddle design to support larger pallet sizes and ensure efficient handling.
Various Pallet Handling: Capable of handling a variety of pallet sizes, the stacker features an option for European pallets with a straddle width adjustment to 530mm.
Electric Powered: Battery-powered for reduced energy costs, with the option of lithium-ion batteries for enhanced performance and extended battery life.

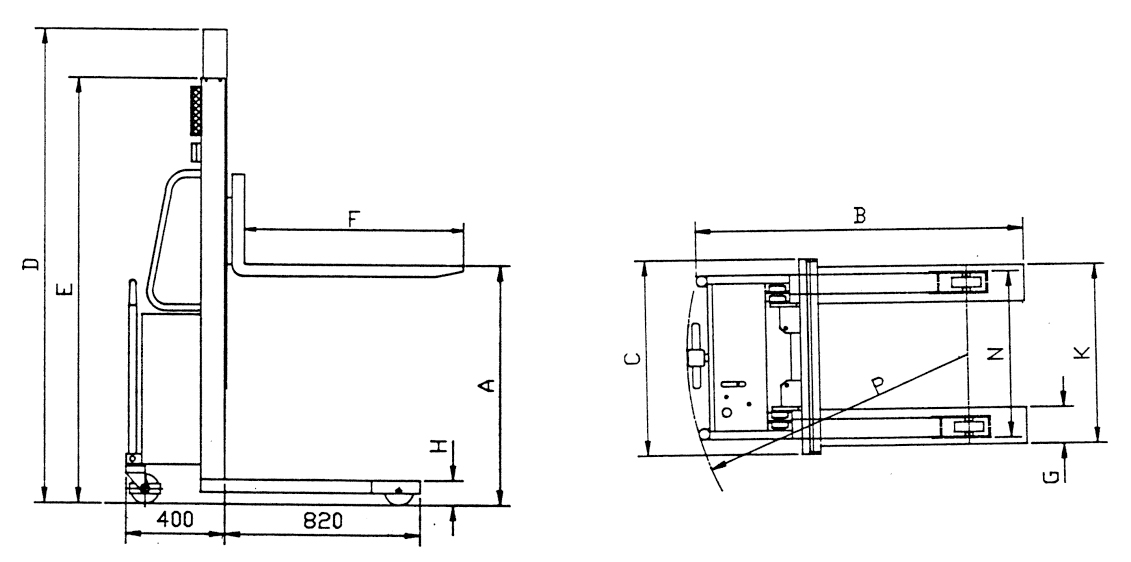

Product Specifications
Specification | Details |
Model | SPS-10, SPS-12, SPS-15, SPS-10W, SPS-12W, SPS-15W |
Lifting Capacity | 1000kg - 1500kg (2200lbs - 3307lbs) |
Fork Length | 900mm (35.43") standard, up to 3500mm (137.8") |
Lifting Height | 2500mm (98.4") standard, up to 3500mm (137.8") |
Fork Width | 95mm - 500mm adjustable |
Mast Type | Telescopic |
Service Weight | 320kg - 740kg |
Battery | 135Ah/12V (build-in), optional lithium-ion batteries |
Drive Motor | 1.5kW |
Straddle Width | 1240mm, 1140mm, adjustable |
Overall Width | 770mm (30.31") |
Fork Thickness | 95mm (3.74") |
Turning Radius | 1537mm (60.47") |
Why Choose NOVELTEK?
Over 30 Years of Expertise: Trusted manufacturer with decades of experience in material handling equipment.
Certified Quality: CE and ISO9001 certified, ensuring top-notch reliability and performance.
Global Reach: Equipment exported to 38 countries, offering global solutions.
Custom Solutions: Tailored equipment to meet your specific material handling needs.
Low Maintenance: Designed for efficiency and minimal downtime.
Commitment to Safety: Focused on safe, environmentally friendly operations.
Fast Delivery: Quick turnaround for orders.
Competitive Pricing: High-quality equipment at reasonable prices.
Get in Touch
Interested in the SPS powered pallet stacker? Contact us today to discuss your specific requirements. Our team is ready to assist you with tailored solutions that meet your material handling needs. Experience the NOVELTEK advantage and enhance your operational efficiency with our advanced equipment.
