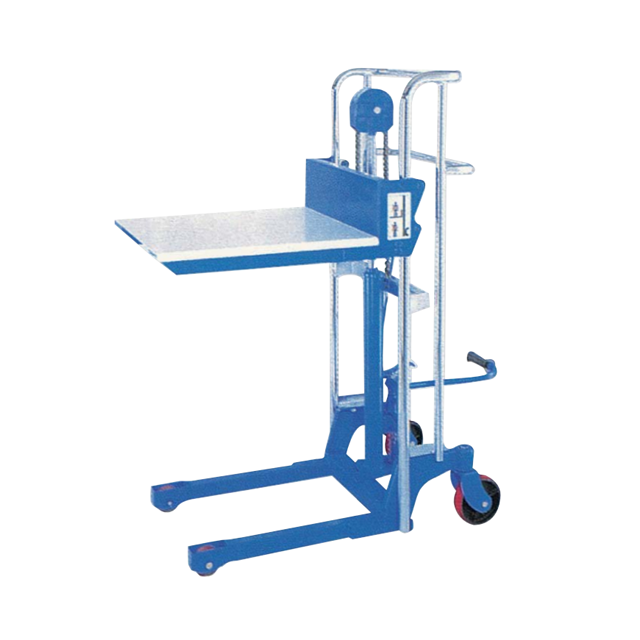

Manual Pallet Stacker(400kg)

5 0 Reviews

· Manual foot operated lifting hydraulic stacker.
· One wheel with brake is standard.
· Two wheels with two brakes are option.
· Maximum fork lifting height:1100~1820mm.
· Single action pump.
· Light duty stacker.

Model:
MPS-04

Availability:

Quantity:



Inquire Add to Basket

Product Description

MODEL:MPS-04/			1100A	1500	1500A	1700	1700A	1820	1820A
LOAD CAPAC TY(kg)		400	400	400	400	400	400	400	400
A	MAX LIFT NG HElGHT(mm)			1500	1500	1700	1700	1820	1820
	FORK WIDTH TYPE	FIXED	ADJUST -ABLE	FIXED	ADJUST -ABLE	FIXED	ADJUST -ABLE	FIXED	ADJUST -ABLE
B	OVERALHElGHT (mm)	1350	1350	1750	1750	1950	1950	2070	2070
	OVERALL W DTH (mm)
	EACH FORKW DTH (mm)
C	FORK LENGTH (mm)		640		640		640		640
D	OVERAlL LENGTH (mm)	1050		1050		1050		1050
E	MAX. FORK OUTER W DTH(mm)	550	540	550	540	550	540	550	540
F	MAX FORK INNER W DTH (mm)	330	315	330	315	330	315	330	315
G	STRADDLE LENGTH (mm)	565	675	565	675	565	675	565	675
MIN. FORK HE GHT(mm)		85	85	85	85	85	85	85	85
FRONT WHEEL (mm)		75X34	75X34	75X34	75X34	75X34	75X34	75X34	75X34
REAR WHEEL (mm)		150X40	150X40	150X40	150X40	150X40	150X40	150X40	150X40
SERvicE WEIGHT (kg)		92	97	108	113	112	117	118	121
PLATFOORM(LXW) (mm)		610X570	640X570	610X570	640X570	610X570	640X570	610X570	640X570
