SPS-10W / SPS-12W / SPS-15W
| Quantity: | |
|---|---|

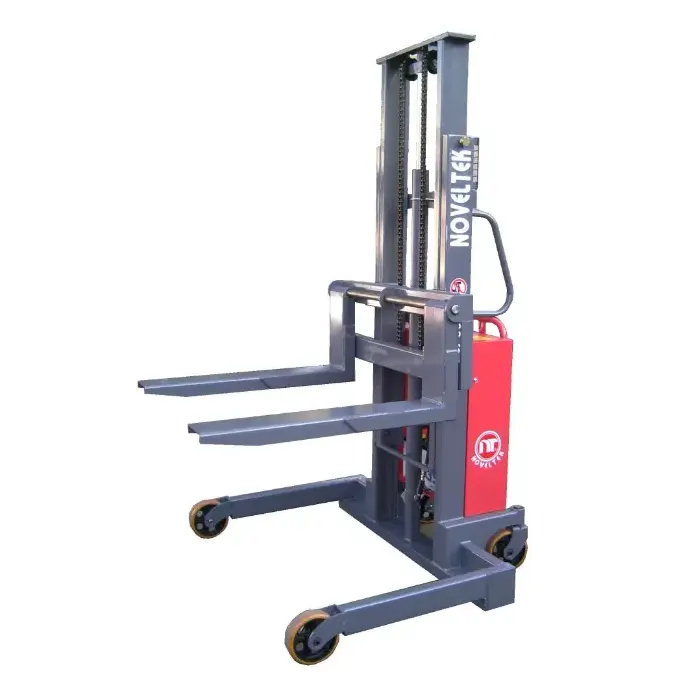

Not every industrial load sits on a standard 48×40 pallet. The Noveltek SPS-10W/12W/15W Wide-Leg Semi-Electric Stacker with Shaft Carrier is engineered for operations handling non-standard load profiles that fall outside the capability of conventional fork-based stackers.
The wide-leg (straddle) base provides a wider stance than standard outrigger designs, allowing the unit to straddle load footprints that would otherwise be too wide or irregularly shaped for safe engagement. The shaft carrier attachment converts the stacker from a fork-based handler to a shaft/arbor support system — practical for cylindrical rolls, paper reels, film rolls, textile booms, or any load where support under a shaft is required rather than fork entry from below.
Powered hydraulic lifting removes the manual pumping requirement, allowing operators to lift loads to height consistently and safely without physical strain on the lift mechanism.
Three load capacities cover the 1-to-1.5-ton range. OEM/ODM customization is available for wide-leg spacing, shaft dimensions, mast height, and application-specific requirements. 100% Made in Taiwan. ISO 9001 certified.
Wide-Leg (Straddle) Base: Wider outrigger stance accommodates non-standard load footprints that standard narrow-leg forks cannot safely engage
Shaft Carrier Attachment: Designed for cylindrical loads, rolls, and items that require shaft or arbor support rather than fork engagement from below
Powered Hydraulic Lifting: Electric lift eliminates manual pump effort; operator lifts loads to height safely
Manual Propulsion: Operator-pushed movement keeps the unit simple and cost-effective for lower-throughput applications
Three Capacity Options: 1,000 / 1,200 / 1,500 kg — select appropriate margin for your load requirements
OEM/ODM Available: Custom leg width, shaft dimensions, and mast height configurations
Paper mills and printing facilities handling roll stock
Textile and garment warehouses handling bolt or roll goods
Plastics and film manufacturing with roll or reel inventory
Any facility with cylindrical, oversized, or non-palletized loads that require shaft or arbor support
Q1：What is a shaft carrier attachment on a stacker?
A1：A shaft carrier is an attachment that replaces or supplements standard fork tines with a horizontal support shaft or tube. It is designed to carry cylindrical loads — such as paper rolls, film reels, textile booms, or pipe stock — by engaging through the center bore of the roll rather than supporting it from below on forks. This prevents the load from rolling off the forks and provides more secure handling of round or cylindrical items.
Q2：Can the SPS-10W/12W/15W be used with standard pallets as well?
A2：The wide-leg straddle configuration accommodates standard pallet widths. The shaft carrier can be swapped or configured based on operational requirements. Contact Noveltek to discuss the specific attachment configuration appropriate for your mixed load environment.
