BPL-10
| Quantity: | |
|---|---|

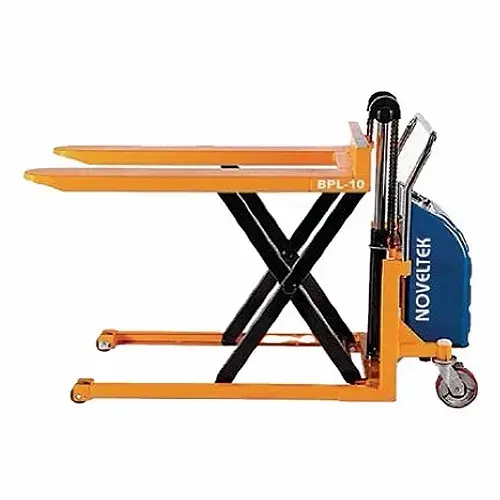

The Noveltek BPL-10 addresses an operational gap that standard pallet trucks and full stackers both miss: the need for adjustable fork elevation in a compact, lightweight, maneuverable platform.
Standard electric pallet trucks lift loads to a low clearance height sufficient for transport but not for elevated positioning. Full stackers provide racking height but are bulkier and more expensive than many applications require. The BPL-10 sits between these two categories: it provides powered hydraulic fork elevation above standard pallet truck height — useful for dock-level matching, staged picking at elevated work surfaces, tiered cart loading, and elevated transfer points — in a lightweight unit that's easier to move and position than a stacker.
The optional fork extension attachment increases the BPL-10's versatility for extended pallet profiles or long-load handling situations where standard fork length is insufficient.
The semi-electric hydraulic system handles the elevation effort; the operator manually propels the unit, keeping the mechanical design simple and the cost accessible.

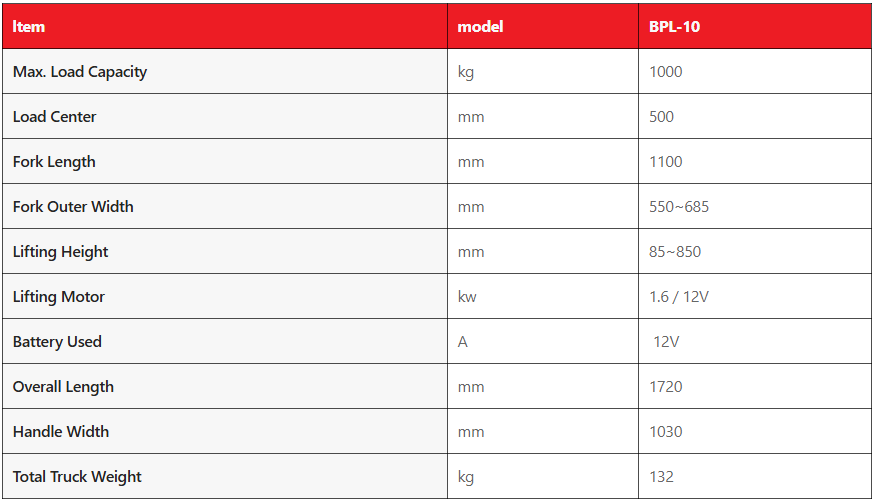

For detailed load capacity and mast height specifications, contact Noveltek directly. OEM/ODM configurations are available for fork dimensions, battery specifications, and application-specific requirements. 100% Made in Taiwan. ISO 9001 certified.
Adjustable Fork Height: Fork elevation capability beyond standard pallet truck height range — useful for dock height matching, tiered staging, and elevated transfer points
Lightweight and Convenient Design: Easier to maneuver than a full stacker; suited to environments where a stacker's full height isn't required
Semi-Electric Hydraulic System: Powered lifting reduces operator effort on elevation; manual propulsion for movement
Optional Fork Extension: Available attachment for extended pallet profiles or long-load handling requirements
Versatile Application: Positioned between a standard pallet truck and a full stacker — fills the gap where standard reach is insufficient
Made in Taiwan: ISO 9001 certified. OEM/ODM available
Dock-level load transfer and height matching
Elevated staging areas and tiered picking workstations
Long-load or extended pallet profile handling (with fork extension)
Facilities requiring fork height adjustment beyond standard pallet truck capability
Supplementary equipment in mixed-height warehouse environments
Q1：How does the BPL-10 differ from a standard semi-electric stacker?
A1：A standard semi-electric stacker is designed to lift loads to racking height — typically 3 to 5 meters or more — using a full mast assembly. The BPL-10 is a high-lift pallet truck that provides adjustable fork elevation above standard pallet clearance height but is not a full racking-height stacker. It's designed for applications where some fork elevation is needed — dock matching, elevated work surfaces, tiered staging — but a full stacker's height and size aren't required. Think of it as an enhanced pallet truck rather than a compact stacker.
Q2：What is the optional fork extension on the BPL-10?
A2：The fork extension is an attachment that increases the effective length of the standard forks, allowing the BPL-10 to handle pallets or loads that are longer than the standard fork length. This is useful for over-length pallets, lumber, metal bar stock, or other extended load profiles that require additional fork support length to handle safely.
