TT-50
Availability: | |
---|---|
Quantity: | |
Key Features of Our Towing Tow Tractor
Powerful Towing Capacity
Towing Capacity: 5000 kg (11,000 lbs) on flat floors, 3000 kg (6,600 lbs) on ramps.
Max. Travel Speed: 6 km/h when empty and 3 km/h when fully loaded, ensuring a balance between speed and safety in heavy-duty tasks.
Designed for Maneuverability
Turning Radius: Small turning radius that allows for effortless navigation in tight spaces, ideal for crowded environments like warehouses and industrial sites.
Driver Seat: Optional seat for added comfort during long shifts. The design ensures that the operator is centered for optimal control.
Versatile and Robust
Battery: Powered by a 240Ah/24V traction battery, capable of supporting long shifts with reduced downtime.
Drive Motor: 1.5kW, efficient for powering both light and heavy loads without compromising energy usage.
Drive Wheels: Front drive wheels (?212×70 mm solid tires) for enhanced traction and stability on various surfaces.
Safety and Convenience
Electric Control: The TT-50 Tow Truck comes with electronic microprocessor control, offering an optional stepless controller for precise speed regulation.
Brake System: Equipped with an electromagnetic spring pressure brake to ensure safe stopping at any point during operation.
Hook: The unit is designed with a pin-type hook for secure attachment to loads.
Customizable and Easy Maintenance
Maintenance: Low-maintenance features, ensuring your tow truck remains in optimal condition with minimal effort.
Options: Seat, hour meter, and custom dimensions available upon request.
Applications Our Towing Tow Tractor
Industrial Use: Ideal for factories, warehouses, and logistics centers.
Cargo Handling: Suitable for towing large cargo across various environments, such as docks or storage yards.
Airport Use: Also compatible with baggage handling in airports, providing a solution for efficient transportation of airport goods.

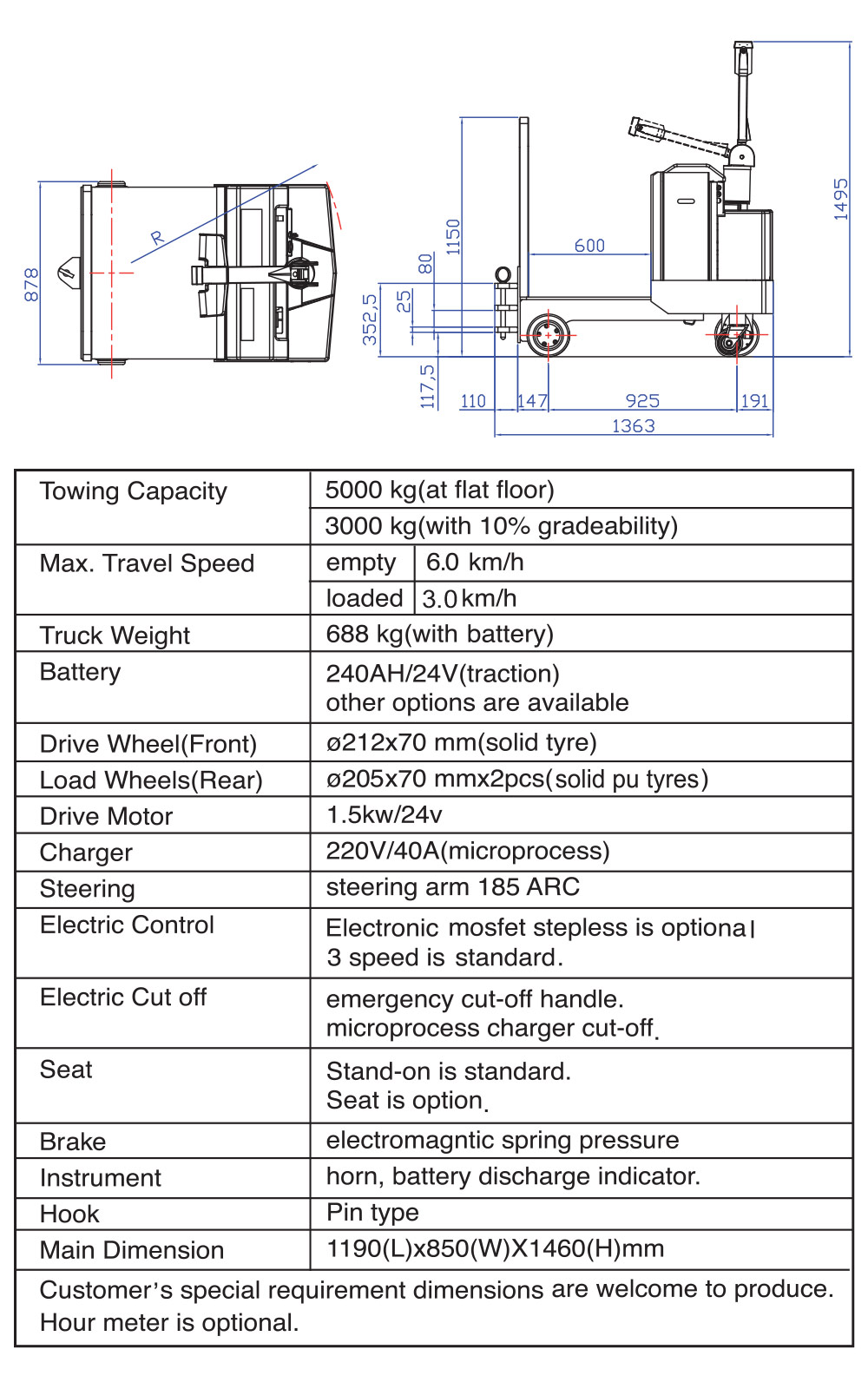

Product Specifications Our Towing Tow Tractor
Specification | Details |
Towing Capacity | 5000 kg (flat), 3000 kg (ramp) |
Max Travel Speed | 6 km/h (empty), 3 km/h (loaded) |
Truck Weight | 688 kg (with battery) |
Battery | 240Ah/24V traction battery |
Drive Motor | 1.5 kW |
Drive Wheels (Front) | Ø212×70 mm (solid tire) |
Drive Wheels (Rear) | Ø250×70 mm (solid tire) |
Steering | Steering arm 185° ARC |
Brake | Electromagnetic spring pressure |
Electric Control | Microprocessor controller, optional 3-speed control |
Dimensions | 1190(L)×850(W)×1460(H) mm |
Hook | Pin Type |
Why Choose NOVELTEK?
At NOVELTEK, we pride ourselves on manufacturing high-quality powered and manual material handling equipment. Our TT-50 electric tow truck is made in Taiwan and designed to meet the highest standards of performance and reliability.
Our equipment is CE and ISO9001 certified, ensuring compliance with the latest international quality and safety standards. Whether you are looking for a compact electric tow tractor for warehouse use or a robust solution for transporting large loads, NOVELTEK has the right equipment for your needs.
Get in Touch
If you're interested in the TT-50 Tow Truck or have unique requirements, don’t hesitate to contact us. Our team is ready to assist you with tailored solutions that fit your material handling needs. Experience the NOVELTEK difference today!
