ATT-50+EPS
| Quantity: | |
|---|---|
Key Features of ATT-50 + EPS Electric Tow Tractor
Powerful Performance: Towing capacity of 5 tons (11,000 lbs), ideal for moving large loads on flat floors and even on ramps.
Electronic Power Steering (EPS): The EPS system makes steering effortless, reducing operator fatigue and enhancing precision in tight spaces.
Advanced AC Motor Technology: The 1.6 kW AC motor delivers consistent power while being energy-efficient and low-maintenance.
Eco-friendly Design: The motor operates without carbon brushes, reducing both maintenance costs and energy consumption by 30%.
Compact and Reliable: This compact design ensures easy navigation through narrow aisles in warehouses, while the FRP body cover offers durability and corrosion resistance.
Seated Design Option: The seat is an optional feature, providing comfort for longer shifts and better control during operations.
Safety and Efficiency: The lead-free PU baked enamel painted wheels and Polyoxymethylene Steering Arm ensure a high level of safety, reliability, and minimal environmental impact.

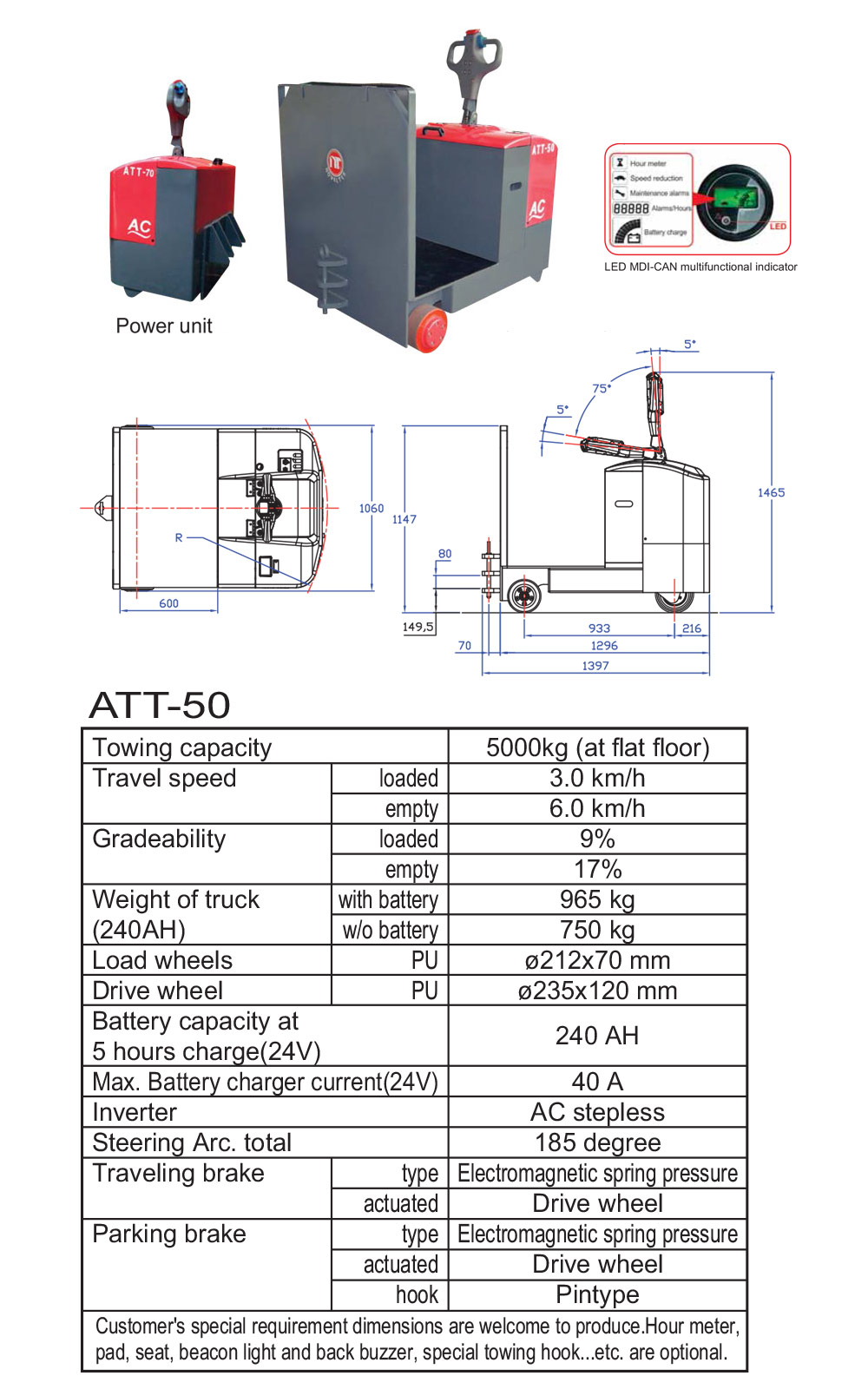

Specifications of ATT-50 + EPS Electric Tow Tractor
Feature | Specification |
Towing Capacity | 5000 kg (5 Tons) |
Travel Speed (Empty) | 6.0 km/h |
Travel Speed (Loaded) | 3.0 km/h |
Gradeability (Empty) | 9% |
Gradeability (Loaded) | 17% |
Vehicle Weight (with battery) | 965 kg |
Load Wheels | PU (Polyurethane) |
Drive Wheels | 2x235×210 mm |
Battery Capacity | 240 Ah (24V) |
Battery Charger | 40 A (24V) |
Motor Power | 1.6 kW |
Steering Arc | 185° |
Braking Mode | Electromagnetic |
Dimensions of ATT-50 + EPS Electric Tow Tractor
Dimension | Measurement |
Overall Length | 1997 mm |
Overall Width | 900 mm |
Overall Height | 1450 mm |
Wheelbase | 720 mm |
Turning Radius | 1750 mm |
Why Choose the ATT-50 + EPS Electric Tow Tractor?
Enhanced Maneuverability: Thanks to the Electronic Power Steering (EPS) system, this model offers precise control, reducing the effort required from the operator and improving handling in confined spaces.
Efficient Energy Usage: With the AC motor and carbon brush-free design, this electric tow tractor consumes less power and reduces maintenance needs, offering a cost-effective solution for long-term use.
Heavy Duty and Reliable: With a 5-ton towing capacity and durable components, the ATT-50 + EPS is perfect for a variety of demanding environments, including warehouses, cargo handling, and airports.
Eco-friendly Design: Designed to reduce emissions and operate quietly, making it ideal for environments requiring a sustainable, low-noise solution.
Comfortable Operation: The seated option ensures operator comfort for extended shifts, improving productivity and reducing fatigue.
Applicable Industries
Industrial Warehouses: Perfect for handling heavy loads in tight spaces, improving warehouse efficiency and productivity.
Airports: Towing baggage carts, ground support equipment, and cargo, essential for fast-paced airport environments.
Manufacturing & Assembly Lines: Ideal for moving parts and materials within production facilities.
Shipping & Logistics: Efficient towing of cargo in warehouses, docks, and other logistics hubs.
Automotive Industry: Ideal for transporting heavy automotive parts and components across factory floors.
E-commerce Fulfillment Centers: Efficient material handling in high-volume retail and distribution operations.
Get in Touch for a Custom Quote
At NOVELTEK, we are committed to providing high-quality, reliable material handling equipment. With over 30 years of expertise and a reputation for innovation, our electric tow tractors like the ATT-50 + EPS are designed to boost productivity while minimizing operating costs.
Contact us today for a tailored solution to meet your specific material handling needs. Our team is here to help with customizations, and we offer competitive pricing and fast delivery. Let us help you optimize your operations and achieve greater efficiency!
