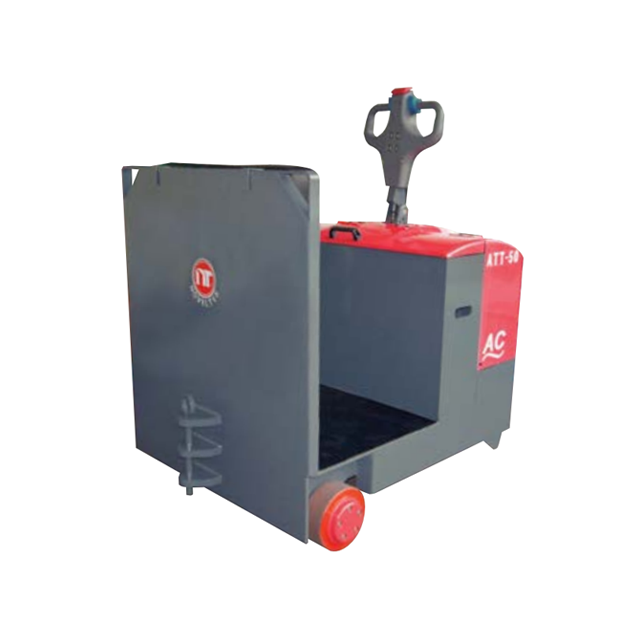

Advanced Tow Truck (AC System) (5 Tons, 11000lb) Electronic Power Steering System (Eps System) Very Easy To Drive

Share to:

Advanced Tow Truck (AC System) (5 Tons, 11000lb) Electronic Power Steering System (Eps System) Very Easy To Drive

5 0 Reviews

· Electronic Power Steering system (EPS system) very easy to drive
· Advanced AC motor product (AC drive motor 1.6Kw/24V)
· Without carbon brush, reduce service cost
· Save electricity efficiently by 30%
· FRP body cover and battery cover
· Lead-free PU baked enamel painting
· Polyoxymethylene Steering Arm
· No pollution, quiet, safety, durable and reliable
· Tow capacity is powerful and could pull 5 tons (11000lb) lorry on normal flat floor
· It can tow 3 tons lorry over ramp
· Seat is an optional item

Model:
ATT-50 + EPS

Availability:

Quantity:



Inquire Add to Basket

Product Description

Towing capacity Travel speed loaded empty		5000kg (at flat floor) 3.0 km/h
Towing capacity Travel speed loaded empty		6.0 km/h
Gradeability	loaded	9%
Gradeability	empty	17%
Weight of truck (240AH) Load wheels	with battery	965 kg
Weight of truck (240AH) Load wheels	w/o battery PU	750 kg ø212x70 mm
Drive wheel	PU	ø235x120 mm
Battery capacity at 5 hours charge(24V)		240 AH
Max. Battery charger current(24V) Inverter Steering Arc. total		40 A AC stepless 185 degree
Traveling brake	type	Electromagnetic spring pressure
Traveling brake	actuated	Drive wheel
type Electromagnetic spring pressure hook Pintype

Customer's special requirement dimensions are welcome to produce.Hour meter, pad, seat, beacon light and back buzzer, special towing hook...etc. are optional.
