POTR-03/2400
| Quantity: | |
|---|---|
Key Features of the POTR-03/2400 Oil Tank Rotating Stacker
Manually Propelled with Powered Lifting: This stacker combines manual propulsion with powered lifting, offering an ideal balance of flexibility and power for various oil tank handling tasks.
360° Rotating Capability: The electric-operated rotating gear set allows for full 360° rotation, providing enhanced versatility in maneuvering and positioning oil tanks.
High Lifting Capacity: With a lifting capacity of up to 300 kg (660 lbs), it is designed to handle heavy-duty oil tank lifting and stacking operations.
Adjustable Clamp Design: The stacker features an upper and lower quick-clamp method for securing and handling tanks with ease and efficiency.
High-Performance Electric Lift: Powered by an electric hydraulic lifting cylinder, the stacker ensures smooth and quick lifting, ideal for heavy tank handling.

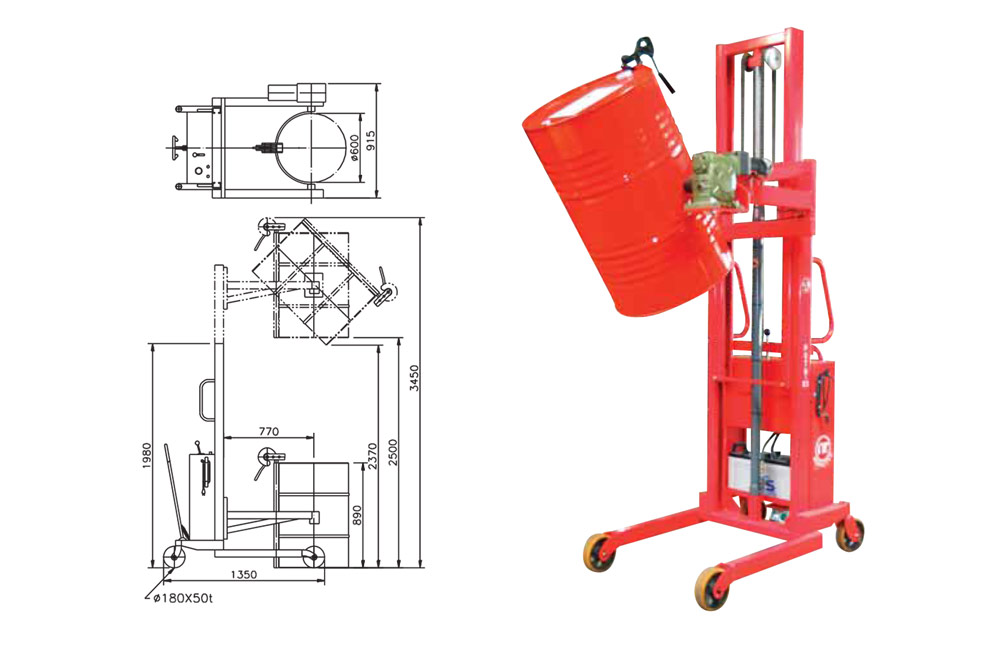

Detailed Specifications
| Item | POTR-03/2400 |
| Minimum Mast Height | 1890 mm |
| Overall Truck Length | 1350 mm |
| Overall Truck Width | 915 mm |
| Standard Oil Tank Dimensions | Ø580 mm x 890 mm |
| Maximum Oil Tank Height | 3450 mm |
| Maximum Oil Tank Angle | 45° |
| Bottom Height | 2370 mm |
| Load Center | 770 mm |
| Straddle Length | 770 mm |
| Minimum Clamp Center Height | 440 mm |
| Lifting Capacity | 300 kg (660 lbs) |
| Turning Radius | 1300 mm |
| Battery | 135Ah/12V |
| Charger | 110V/12V-12A or 220V/12V-12A |
| Total Truck Weight | 320 kg |
| Clamp Method | Upper and Lower Quick Clamp |
| Digital Weight Scale | Optional |
Performance Features
Heavy-Duty Oil Tank Handling: With a 300 kg lifting capacity and adjustable clamp design, this stacker is built for heavy-duty oil tank handling, whether for fuel storage, industrial tank operations, or fuel transfer.
360° Rotating Gear Set: The ability to rotate the oil tank 360° increases operational flexibility, making it easy to move tanks in confined spaces or position them accurately for storage or transfer.
Electric Powered Lifting System: Equipped with an electric-operated hydraulic lifting cylinder, this stacker ensures smooth, controlled lifting and is especially beneficial for handling heavy or large oil tanks.
Compact and Durable: With its compact design and high-quality materials, the POTR-03/2400 is designed to fit into tight spaces, making it ideal for oil tank operations in confined industrial environments.
Applications
The POTR-03/2400 is ideal for various industries and applications, including:
Fuel and Oil Tank Storage: Efficiently handle and stack large oil tanks in warehouses, industrial facilities, and petroleum storage sites.
Petroleum and Fuel Distribution: Perfect for fuel tank loading and unloading in distribution centers.
Heavy-Duty Industrial Applications: Suitable for other heavy-duty lifting tasks where large cylindrical containers or tanks need to be moved with precision.
Why Choose NOVELTEK’s POTR-03/2400 Oil Tank Rotating Stacker?
Proven Reliability: All NOVELTEK products are CE and ISO 9001 certified, ensuring the highest levels of safety and performance.
Tailored Solutions: We offer customizable equipment solutions to meet your unique oil tank handling needs, ensuring optimal efficiency and productivity.
Global Reach: Trusted in over 38 countries, NOVELTEK’s equipment helps clients worldwide reduce costs and increase operational efficiency.
Contact NOVELTEK for Your POTR-03/2400 Oil Tank Rotating Stacker Today! Improve your tank handling operations with NOVELTEK's high-performance POTR-03/2400. Get in touch for more information, customized solutions, or to place an order. We look forward to partnering with you!
