MOTR-03/1400
| Quantity: | |
|---|---|
Key Features of the MOTR-03/1400 Oil Tank Rotating Stacker
Manual Powered Lifting & Rotation: This stacker utilizes a manual-operated hydraulic lifting cylinder and a rotating gear set, allowing smooth and reliable oil tank rotation and lifting without the need for power sources.
Heavy-Duty Lifting Capacity: It supports lifting capacities of up to 300 kg (660 lbs), ideal for handling standard oil tanks and heavy petroleum storage equipment.
360° Rotating Capability: The electric-operated gear set provides a full 360° rotation, giving operators enhanced flexibility to position tanks efficiently.
Compact & Space-Saving Design: With its minimal size, this stacker ensures optimal space usage in crowded warehouses or storage facilities.
Durable & Reliable Construction: Built for industrial use, the stacker ensures long-lasting reliability, capable of withstanding demanding environments.

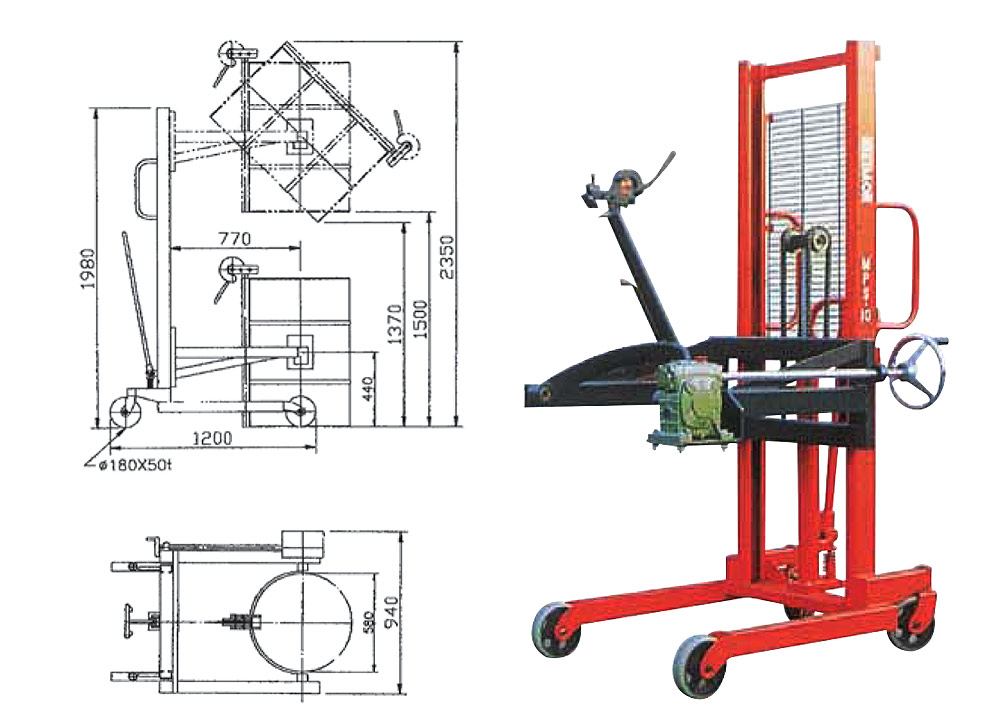

Detailed Specifications
Item | MOTR-03/1400 |
Lifting Capacity | 300 kg (660 lbs) |
Overall Truck Length | 1200 mm |
Overall Truck Width | 940 mm |
Minimum Mast Height | 1980 mm |
Maximum Lifting Height | 1400 mm |
Maximum Oil Tank Angle | 45° |
Maximum Oil Tank Top Height | 2350 mm |
Bottom Height | 1370 mm |
Straddle Length | 770 mm |
Minimum Clamp Center Height | 440 mm |
Turning Radius | 1250 mm |
Standard Oil Tank Dimensions | Ø580 mm x 890 mm |
Truck Weight | 195 kg |
Clamp Method | Upper and Lower Quick Clamp |
Performance Features
Manual Lift Operation: The MOTR-03/1400 relies on manual lifting, making it energy-efficient and cost-effective for businesses looking to reduce electric power usage while maintaining reliable oil tank handling capabilities.
360° Rotating Gear Set: The manual-operated rotating gear set facilitates a smooth, 360° rotation of the oil tank, making it easy to position tanks in tight storage spaces and enhance operational flexibility.
Heavy-Duty Oil Tank Handling: With a maximum lifting capacity of 300 kg, the MOTR-03/1400 is perfect for handling standard oil tanks and other heavy fuel storage equipment.
Versatile Clamp Method: The stacker's quick-clamp mechanism ensures that oil tanks are securely held during lifting and rotation, increasing both efficiency and safety.
Applications
The MOTR-03/1400 Oil Tank Rotating Stacker is ideal for the following industries:
Petroleum and Fuel Storage: Efficiently move and rotate oil tanks in fuel storage facilities or distribution centers.
Industrial Warehousing: Suitable for industrial-grade warehouses requiring heavy-lifting capabilities and precise tank positioning.
Oil Tank Transport: Designed for moving standard oil tanks in applications where manual operation is preferred.
Why Choose NOVELTEK’s MOTR-03/1400 Oil Tank Rotating Stacker?
NOVELTEK has been a trusted name in material handling equipment since 1990. Our products are designed to deliver reliable and long-lasting performance for industries worldwide.
Proven Quality: All our products, including the MOTR-03/1400, are CE and ISO 9001 certified, ensuring the highest standards in safety, durability, and performance.
Tailored Solutions: We offer customized material handling solutions to meet the specific needs of your business, whether for oil tank handling or other specialized tasks.
Global Reach: Our products are used in over 38 countries, supporting industries in regions including Japan, Germany, the US, Canada, Australia, and more.
Contact NOVELTEK for Your MOTR-03/1400 Oil Tank Rotating Stacker Today! Boost your tank handling efficiency with the MOTR-03/1400. For more information or to place an order, contact us today. We are committed to providing solutions that meet your operational needs.
