MPS-04
| Quantity: | |
|---|---|
Product Features of MPS-04 Manual Pallet Stacker
High Load Capacity & Versatility
The MPS-04 Manual Pallet Stacker is engineered to support up to 400 kg, making it perfect for heavy lifting tasks. Whether for stacking pallets or transporting goods, this unit ensures reliable lifting power.
Adjustable Fork Width
The MPS-04 Manual Pallet Stacker features an adjustable fork width option that provides flexibility in handling different sizes of pallets. This capability makes the stacker adaptable to a wide range of applications, from narrow to wide pallets.
Manual Hydraulic Lifting
Equipped with a manual foot-operated hydraulic pump, the MPS-04 Manual Pallet Stacker ensures smooth and efficient lifting without the need for electrical power. This user-friendly operation makes it perfect for environments where electricity is not available or necessary.
Compact Design for Space Efficiency
This manual pallet stacker is designed to maximize workspace efficiency. Its compact size, with an overall width of 600 mm, allows it to maneuver through tight aisles and congested areas with ease.

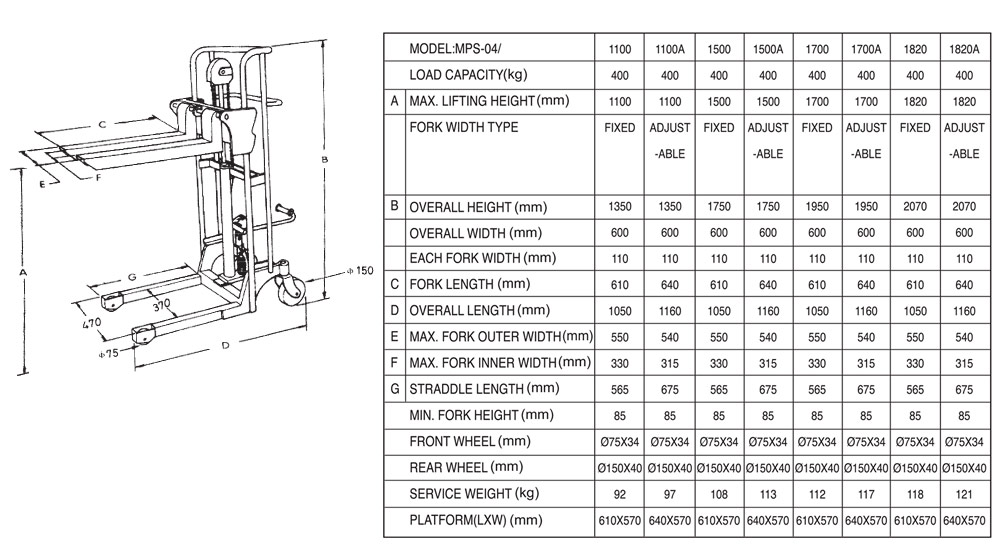

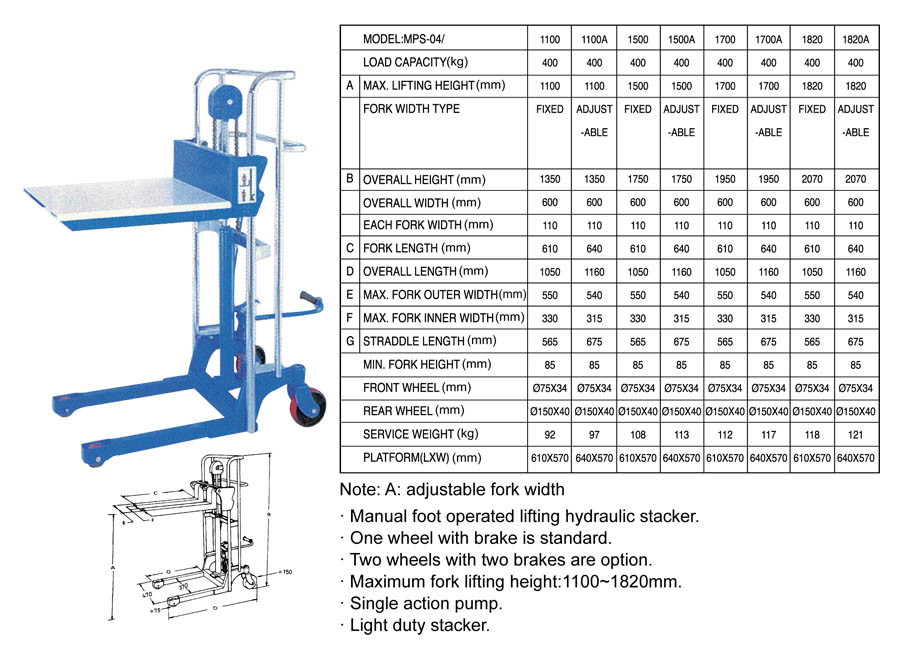

Specifications of MPS-04 Manual Pallet Stacker
Model | MPS-04 Manual Pallet Stacker |
Load Capacity | 400 kg |
Max Lifting Height | 1100 mm to 1820 mm |
Fork Width Type | Fixed or Adjustable |
Overall Height | 1350 mm to 2070 mm |
Overall Width | 600 mm |
Fork Length | 610 mm |
Max Fork Outer Width | 550 mm |
Max Fork Inner Width | 330 mm |
Straddle Length | 565 mm |
Min Fork Height | 85 mm |
Service Weight | 92 kg - 121 kg |
Front Wheel | Ø150x40 |
Rear Wheel | Ø150x40 |
Platform Size | 610x570 mm |
Advantages of MPS-04 Manual Pallet Stacker
Easy Handling: The ergonomic design of the MPS-04 Manual Pallet Stacker, with foot-operated hydraulic lifting, minimizes physical strain and increases user efficiency.
High Maneuverability: The stacker’s compact dimensions and swivel wheels allow for smooth movement in tight spaces, enhancing operational efficiency.
Durability and Reliability: Made with high-quality materials, this manual pallet stacker is built to last, providing years of reliable service in demanding environments.
Wide Range of Applications: Whether you need it for stacking, lifting, or transporting pallets, the MPS-04 Manual Pallet Stacker offers versatility across different industries, including warehousing, manufacturing, and logistics.
Why Choose NOVELTEK?
Since 1990, NOVELTEK has been a leader in manufacturing high-quality material handling equipment, including manual and powered pallet stackers. Our products are CE and ISO9001 certified, meeting all quality standards. We are committed to innovation and customer satisfaction, ensuring you receive reliable and efficient products for your needs. With export to over 38 countries worldwide, NOVELTEK offers exceptional machinery at competitive prices, with a focus on reducing maintenance costs and improving productivity.
Contact us today
Ready to optimize your material handling processes? Contact us today to learn more about the MPS-04 Manual Pallet Stacker and request a quote. Let us help you improve efficiency and save time in your business operations.
