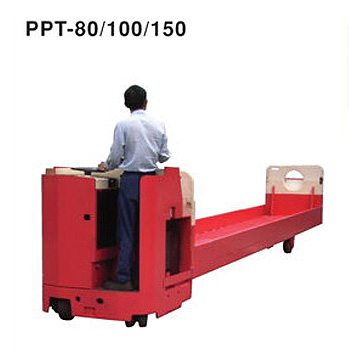

PPT-80/100/150 Special Model
NOVELTEK
| Size: | |
|---|---|
| Quantity: | |
Beyond the 7-ton range covered by the APT-70 AC+EPS, material handling requirements in steel service, port operations, aerospace manufacturing, and heavy industrial supply chains continue to scale. The Noveltek PPT-80/100/150 Special Model addresses the 8-to-15-ton segment — where the equipment itself becomes an engineering project rather than a catalog selection.
The Special Model designation indicates that these machines are configured from application specifications, not selected from fixed product configurations. Buyers at this tonnage range typically have specific requirements: fork dimensions matched to their particular load footprint, structural reinforcement for unusual load distribution patterns, or operational configurations optimized for specific facility layouts.
Noveltek's 36-year OEM manufacturing history includes heavy industrial equipment for demanding international clients across Europe, Japan, and North America. The engineering capability required to design and validate custom 15-ton material handling equipment — and to do so to CE certification standards — is not common in the market. This track record is the quality signal for buyers evaluating PPT-150 class equipment.
Contact Noveltek with your specific application requirements: load weight and dimensions, floor surface and grade, cycle frequency, and facility layout. The engineering team will develop a configuration specification and quotation for your review. 100% Made in Taiwan.

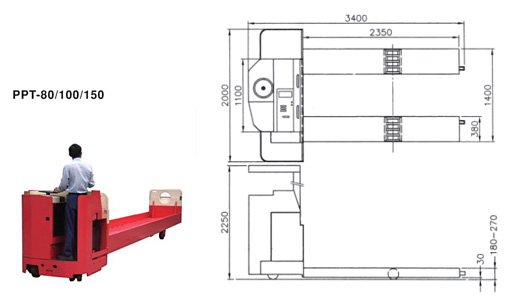

ITEM | PPT-80 | PPT-100 | PPT-150 |
LIFT CAPACITY | 8000kg | 10000kg | 15000kg |
LIFT HEIGHT | 120-240 mm or 180~270 mm | ||
TRUCK LENGTH | 3400mm | ||
TRUCK WIDTH | 2250mm | ||
FORK | 2350×1400 mm (AS REQUIRED) | ||
SPEED CONTROL | STEPLESS | ||
DRIVE WHEEL＊ | φ300×150mm | ||
FORK WHEEL ＊ | φ250×80mm×8pcs | ||
CASTOR WHEEL＊ | φ127×80mm×2pcs | ||
BATTERY | 400AH/48V | ||
CHANGER | 220V×80A (3 Phase) | ||
SERVICE WEIGHT | 3500 kg | 3800 kg | 4000 kg |
Remarks | Fork platform can be changed according to necessity custom | ||
Note: * as the reference size, according to different models, different sizes.
• Extreme Tonnage Capacity: PPT-80 (8T), PPT-100 (10T), PPT-150 (15T) — for applications where standard equipment simply isn't rated
• Special Model Engineering: Custom configurations developed from application specifications — not catalog products with fixed configurations
• Industry-Specific Applications: Steel service centers, port facilities, aerospace manufacturing, bulk materials handling, heavy automotive components
• Heavy-Duty Structural Platform: Frame and fork engineered for sustained operation at extreme load weights with appropriate safety factors
• OEM/ODM Engineering: 36 years of heavy-duty industrial equipment manufacturing experience
• CE Certified Platform: Safety validation for extreme-tonnage configurations
• Made in Taiwan: ISO 9001 certified. Non-China Origin — Section 301 tariff exempt for U.S. buyers.
• Steel coil and plate handling in service centers and rolling mills
• Port facilities handling heavy cargo and container dollies
• Aerospace manufacturing for large component and tooling transport
• Heavy automotive manufacturing — engine, transmission, and chassis components
• Bulk building materials: concrete elements, stone, heavy structural components
• Any extreme-tonnage application requiring custom-engineered horizontal transport
Q1: What is the difference between the standard PPT-80/100/150 and the Special Model?
A1: The standard PPT-80/100/150 series provides baseline 8-to-15-ton capacity in a defined configuration. The Special Model designation indicates customized engineering — fork dimensions, structural reinforcement, or operational features specific to a buyer's application requirements. Buyers with non-standard load profiles, unusual facility constraints, or specific regulatory documentation requirements typically specify the Special Model configuration. Contact Noveltek with your application details to determine which configuration is appropriate.
Q2: What floor loading considerations apply to a 15-ton pallet truck?
A2: A 15-ton rated pallet truck carrying a 15-ton load concentrates significant weight through the drive and load wheels onto the floor surface beneath them. Before deploying PPT-150 class equipment, verify that your facility's floor construction (concrete thickness, reinforcement, and load rating) accommodates the combined weight of the vehicle and maximum load at the wheel contact points. This is a structural engineering assessment — consult a structural engineer with your floor specification and the truck's wheel load data, which Noveltek can provide.
