KL-45
| Quantity: | |
|---|---|

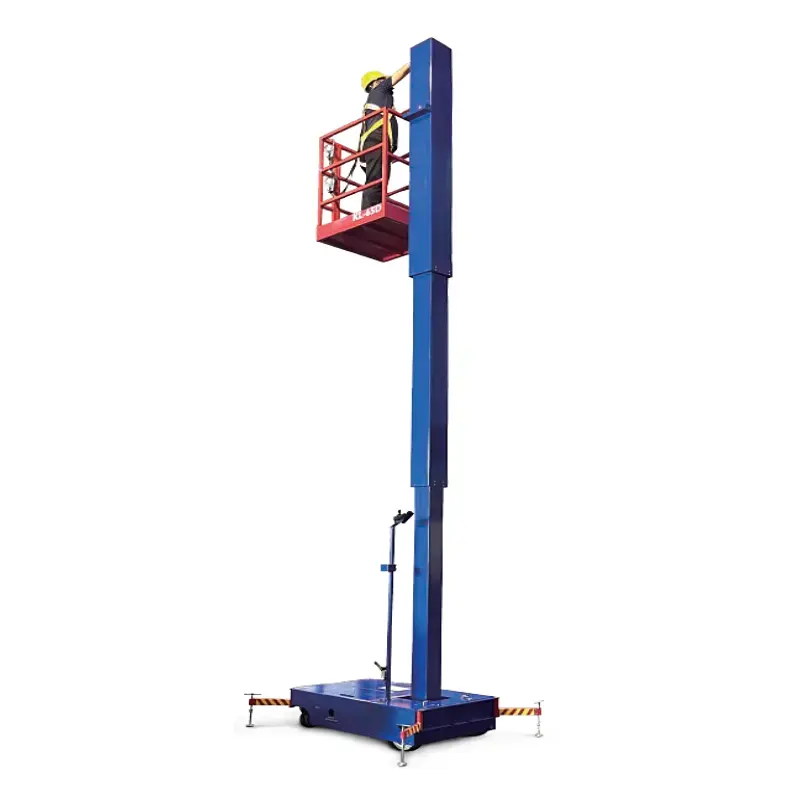

The Noveltek KL-45 Aerial Platform Truck combines vehicle mobility with elevated work platform access — a self-propelled wheeled unit that drives to the work location and elevates the operator for overhead tasks in both indoor and outdoor environments.
The KL-45 is positioned for applications where the work moves — facility exterior maintenance, large-footprint building inspection, outdoor installation and servicing — where a static aerial lift or scissor lift would require repeated repositioning. The wheeled truck drives under its own power, positions at the work site, and elevates, delivering a mobile work platform without the logistics overhead of towing, transport, or manual repositioning.
Contact Noveltek for detailed specifications on platform height, load capacity, and drive system configuration. OEM/ODM customization is available for specific platform dimensions and operational requirements. 100% Made in Taiwan. ISO 9001 certified. CE certified.
| Model | KL-45D | Self-propelled |
|---|---|---|
| Platform size | 0.75 m x 0.8 m | |
| Rated weight | 200 kg | |
| Working height | 6.5 m | |
| Number of passengers | 1 | |
| Platform height | 0.6 m ~ 4.5 m | |
| Rise time | 34 s | |
| Weight | 610 kg | |
| Machine length , width and heigh (when in standby) | 1.34 m (L) x 0.8 m (W) x 2.4 m (T) | |
| Fixed support rod | 1.72 m (L) x 1.18 m (W) | |
| Walking speed | 3.5 km/h Max | |
| Battery | 2 x 12V 100A | |
| Voltage | 24V | |
| Input | AC 100V~240V , 50/60 Hz | |
| Lifting system | Oil pressure | |
| Driving wheel | 230 mm | |
| Driven wheel | 6 | |
| Brake system | automatic braking | |
| Model | KL-45P | Hand push |
|---|---|---|
| Platform size | 0.75 m x 0.8 m | |
| Rated weight | 200 kg | |
| Working height | 6.5 m | |
| Number of passengers | 1 | |
| Platform height | 0.6 m ~ 4.5 m | |
| Rise time | 34 s | |
| Weight | 590 kg | |
| Machine length , width and heigh (when in standby) | 1.34 m (L) x 0.8 m (W) x 2.4 m (T) | |
| Fixed support rod | m (L) x 1.18 m (W) | |
| Walking speed | N/A | |
| Battery | 2 x 12V 100A | |
| Voltage | 24V | |
| Input | AC 100V~240V , 50/60 Hz | |
| Lifting system | Oil pressure | |
| Driving wheel | 4 | |
| Driven wheel | 4 | |
| Brake system | Foot brake | |
• Wheeled Self-Propelled Platform: Vehicle-mounted aerial platform drives to the work location under its own power — not towed or manually pushed
• Elevated Work Reach: Platform elevation provides access to elevated positions for maintenance, inspection, and overhead work
• Mobile Positioning: Drive-and-work capability — operator positions and elevates without the setup time of trailer-mounted or fixed aerial equipment
• Outdoor and Indoor Capability: Wheeled design suitable for paved outdoor areas and internal facility roads
• OEM/ODM Available: Custom platform dimensions and reach specifications
• Made in Taiwan: ISO 9001 certified. CE certified.
• Facility exterior maintenance and inspection
• Large-footprint warehouse and factory roof and facade access
• Outdoor installation and overhead servicing on paved areas
• Utility and infrastructure maintenance requiring mobile elevated access
• Event and venue elevated access for temporary overhead installation
Q1: How does the KL-45 differ from the SC-series scissor lifts?
A1: The SC-series scissor lifts are designed primarily for indoor use on smooth warehouse and facility floors — their compact, low ground-pressure chassis is optimized for interior deployment. The KL-45 Aerial Platform Truck is a wheeled vehicle platform designed for larger-area coverage, outdoor paved surfaces, and applications where the work location changes frequently over longer distances. The right choice depends on your operating environment and the scale of movement required between work positions.
Q2: What is the working height of the KL-45?
A2: Working height specifications are available on request. Contact Noveltek with your required working height and application environment for the appropriate KL-45 configuration.
