Are you confident that you're operating your warehouse electric forklift safely and efficiently? The reality is that for many operators, the most critical aspect of forklift safety—understanding the load center and its impact on lifting capacity—remains a mystery. Failing to grasp this one concept can lead to catastrophic accidents, from a tipped-over machine to serious injuries. This comprehensive guide will demystify the science behind your electric forklift’s load center, teaching you not only how to calculate its safe lifting capacity but also how to ensure every lift you make is a secure and stable one.
To truly appreciate the importance of the load center, you must first understand the physics governing your forklift. A forklift is essentially a mobile seesaw, where the front axle acts as the pivot point or fulcrum. The two main forces at play are the weight of the load on the forks and the balancing weight of the machine itself, particularly the large counterweight at the rear.
The stability triangle is a key concept that defines the three-dimensional area of a forklift’s stability. It's an imaginary triangle formed by the two front wheels and the center of the rear axle. As long as the combined center of gravity of the forklift and its load remains within this triangle, the machine is stable. If the center of gravity shifts outside this area, the forklift will tip.
Another critical concept is the load moment. This is the overturning force created by the load, which is calculated by multiplying the load's weight by its distance from the front axle. A longer distance from the axle (a larger load center) or a heavier load both increase the load moment, making the forklift more susceptible to tipping. This is why knowing your load center is paramount for safe warehouse electric forklift operation.
A forklift's load center is the distance from the vertical face of the forks to the load's center of gravity. The center of gravity is the single point in an object where its entire weight is considered to be concentrated. For a uniformly shaped load, like a pallet of goods with an even distribution, the center of gravity is in the exact geometric center.
When a warehouse electric forklift is manufactured, its rated capacity—the maximum weight it can lift—is determined based on a specific, standard load center. This value is stamped on the forklift's data plate.
While a 24-inch load center is the industry standard for most electric forklifts, it is not a fixed universal rule. The 24-inch figure is based on a standard 48-inch-long pallet with an evenly distributed load. For specialized applications, such as handling very long or unusually shaped materials, an electric forklift may have a different rated load center, such as 30, 48, or even 60 inches. Always check the manufacturer’s data plate to confirm the rated load center and capacity.
The data plate is your electric forklift's most important document. This metal tag, usually located on the dashboard or near the operator's seat, provides a wealth of information, including:
The model and serial number
The weight of the unladen truck
The maximum rated lifting capacity
The maximum rated lifting height
The rated load center
Before every shift, take a moment to review this plate. It's your ultimate source of truth for safe operation, and ignoring it is a common cause of accidents.
A forklift's rated capacity is an ideal number based on perfect conditions. In the real world, several factors can increase the load center and reduce the actual, safe lifting capacity of your electric forklift:

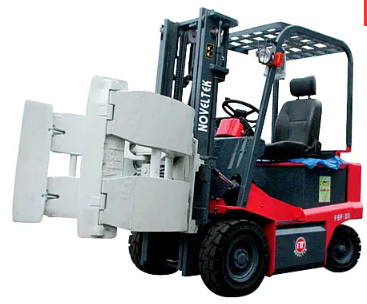

1. Attachments: Adding an attachment—like a sideshifter, clamp, or boom—is a major factor that reduces capacity. Every attachment has an "effective thickness" that pushes the load further out from the face of the forks, significantly increasing the load center. A forklift with an attachment must have an updated data plate that specifies the new, reduced lifting capacity.
2. Uneven or Irregular Loads: A load that is not centered on the pallet or has an uneven weight distribution will have its center of gravity shifted. If the weight is concentrated to one side, it can shift the stability of the forklift, making it vulnerable to sideways tipping. Always check for a stable and even distribution before lifting.
3. Tilting the Mast and Lifting Height: Tilting the mast forward moves the load away from the front axle, increasing the load center and decreasing stability. The same principle applies when you lift a load to a great height. As the load goes up, the combined center of gravity of the forklift and its load moves both forward and upward, making the stability triangle smaller and the risk of a tip-over greater. This is why a forklift’s lifting capacity is reduced as the lift height increases.
4. The Horizontal and Vertical Load Center: The concept of load center has both a horizontal and a vertical component. The horizontal load center is the distance from the fork face to the center of gravity, which we’ve discussed. However, the vertical load center—the distance from the ground to the center of gravity—also affects stability. Lifting a very tall load, for instance, significantly raises the vertical load center, making the forklift less stable.
When your load center differs from the rated load center on your data plate, you must calculate the revised lifting capacity to ensure a safe lift. This is a simple but essential calculation.
The Formula:
(Rated Load Center÷Actual Load Center)×Rated Capacity=New Lifting Capacity
Let's apply this with a few practical examples to show just how important this calculation is for your warehouse electric forklift.
Example 1: The Standard Long Load You have an electric forklift with a rated capacity of 4,500 lbs. at a 24-inch load center. You need to lift a very long, but evenly distributed, pallet that is 72 inches long. This means your actual load center is 36 inches (72 inches ÷ 2).
Calculation: (24÷36)×4,500 lbs.=3,000 lbs.
Result: The forklift’s capacity for this specific load is reduced to 3,000 lbs. If your load weighs more than that, it is unsafe to lift.
Example 2: The Added Attachment You have a 6,000 lb. capacity electric forklift with a 24-inch load center. You've installed a sideshifter that adds 6 inches of effective thickness, making your new load center 30 inches.
Calculation: (24÷30)×6,000 lbs.=4,800 lbs.
Result: Your forklift can now only safely lift loads up to 4,800 lbs., a reduction of 1,200 lbs.
Knowing the calculations is just the beginning. Adhering to best practices is what truly ensures safety.
Always Check the Data Plate: Before every operation, especially with a new type of load, consult the data plate to confirm your rated capacity and load center.
Keep the Load Low: While driving, always keep the load as low as possible, typically 4 to 6 inches from the ground. This keeps the combined center of gravity low and stable.
Place the Load Against the Backrest: For maximum stability, always position the load as close to the load backrest as possible. This minimizes the actual load center.
Slow Down and Be Smooth: Avoid quick turns, sudden braking, or rapid acceleration, especially when carrying a heavy load. These actions can shift the load's center of gravity and cause instability.
Stay Within the Stability Triangle: Never operate your warehouse electric forklift with a combined center of gravity that is outside the stability triangle. Be mindful of inclines, slopes, and uneven surfaces. When on a slope, always drive with the forks pointing uphill when loaded and downhill when empty.
Q1: How does an attachment affect the load capacity of a warehouse electric forklift?
A: An attachment significantly reduces your electric forklift's lifting capacity. It adds both its own weight and, more importantly, "effective thickness" that pushes the load away from the mast. This increases the load center, which in turn reduces the safe lifting capacity. Always get an updated data plate from the manufacturer or a certified dealer when you install a new attachment to know your new, reduced capacity.
Q2: Can I lift my forklift's rated capacity at any height?
A: No. A forklift's lifting capacity is rated for a specific load center and height. As you lift a load higher, the forklift's capacity is reduced. This is because the vertical load center shifts upward, making the machine less stable. A load you can safely lift 10 feet may be too heavy to lift 20 feet.
Q3: Is it safer to lift a heavy load that is short and wide or a light load that is tall and narrow?
A: It is generally safer to lift a heavy load that is short and wide, as long as it is within the forklift's rated capacity and load center. A taller, narrower load has a much higher center of gravity, which can cause the forklift to become unstable and tip sideways. Always prioritize a stable center of gravity over total weight.
Q4: What should I do if my forklift starts to tip over?
A: If your electric forklift begins to tip, do not attempt to jump out. The safest place to be is inside the operator's compartment. Hold on firmly to the steering wheel and brace yourself. Lean away from the direction of the tip, as this will help you stay inside the safety cage and minimize the risk of being crushed.
Q5: What are the key differences in how the load center affects a warehouse electric forklift compared to a gas-powered one?
A: While the fundamental principles of physics and stability remain the same, electric forklifts have a few key differences. Their batteries are a significant part of the counterweight, which is why battery maintenance is crucial for maintaining stability. Additionally, electric motors provide very precise and smooth control, which can help in slowly and carefully handling loads that might be close to the capacity limit. However, the same risks of overloading and improper load distribution apply.
Ultimately, mastering your electric forklift's load center is not just a technical skill—it’s a fundamental component of safe and efficient warehouse operations. By understanding the principles of stability, correctly reading the data plate, and knowing how to calculate your revised lifting capacity, you can prevent accidents, protect your equipment, and ensure your team works with confidence. For any questions about choosing the right warehouse electric forklift or understanding its specific capabilities, consult with a trusted expert to guarantee you’re operating at peak safety and performance.
