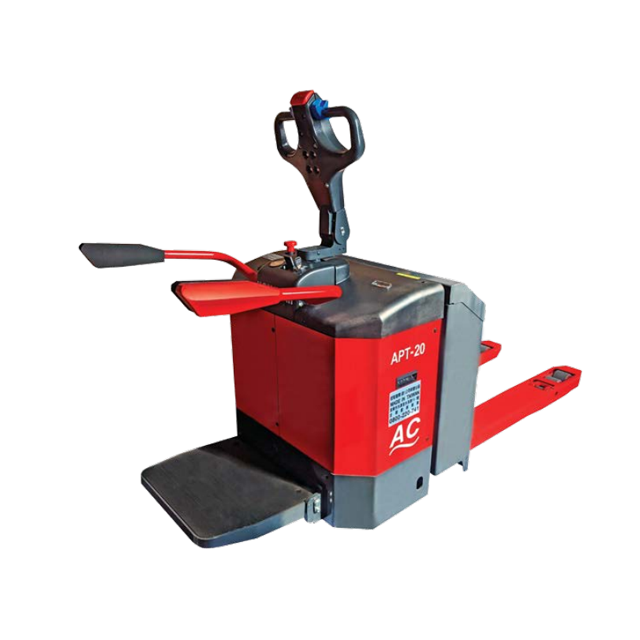

APT-20H+EPS+SUSPENSION
| Quantity: | |
|---|---|
The APT-20H+EPS+SUSPENSION is a high-performance powered pallet truck specifically designed for high-speed operations and heavy-duty tasks. This model is ideal for industries that require faster material handling while ensuring a smooth ride over rough or uneven surfaces.
Key Features of the APT-20H+EPS+SUSPENSION
High Speed: With a top speed of 9 km/h, this pallet truck is 50% faster than standard models, helping to increase efficiency and reduce transport time within warehouses and distribution centers.
Advanced Suspension: The built-in 30mm suspension system minimizes shocks and vibrations, ensuring smoother operation on uneven surfaces and reducing operator fatigue.
Electronic Power Steering (EPS): The EPS steering system provides exceptional maneuverability, allowing operators to easily turn the truck with minimal effort. The steering arm can rotate 185 degrees, offering maximum flexibility and convenience.
Foldable Side Guards: To ensure safety, the foldable side guards provide all-around protection, reducing the risk of accidents during operation and improving operator confidence.
Heavy-Duty Capacity: With a 2-ton capacity, the APT-20H is well-suited for heavy-duty material handling tasks in busy industrial environments.
Technical Specifications
Feature | APT-20H+EPS+SUSPENSION |
Rated Capacity | 2,000 kg |
Top Speed | 9 km/h |
Suspension System | 30 mm |
Steering System | EPS (Electronic Power Steering) |
Steering Arm Rotation | 185 degrees |
Side Guard | Foldable |
Drive Motor Power | 1.2 kW |
Lift Motor Power | 2.0 kW |
Battery | 24V / 210Ah |
Charger | 24V / 30A |
Dimensions (L x W x H) | 1550 mm x 550 mm x 1200 mm |
Fork Length | 1150 mm |
Versatility and Maneuverability
The APT-20H+EPS+SUSPENSION pallet truck offers versatile functionality with the ability to handle tight turns and navigate through narrow aisles, thanks to the efficient EPS steering system. The adjustable fork length and ergonomic design ensure that it can accommodate a variety of pallet sizes, making it suitable for different material handling needs. Whether you're managing large inventories or working in smaller spaces, this truck is built to meet your demands.
Durability and Safety
Safety is a top priority in every design aspect of the APT-20H. The foldable side guards provide all-around protection, reducing the chance of damage or accidents. Additionally, the heavy-duty construction ensures the truck is built to withstand demanding industrial environments, making it a reliable solution for continuous use.
Ideal Applications
Warehousing: Improve the efficiency of material handling with high-speed operation.
Logistics: Transport goods quickly across large warehouse floors and distribution centers.
Retail and Wholesale: Expedite stock movements in busy retail and wholesale environments.
Product Dimensions
Dimension | Measurement |
Overall Length | 1550 mm |
Overall Width | 550 mm |
Overall Height | 1200 mm |
Fork Length | 1150 mm |
Fork Width | 160 mm |
Why Choose NOVELTEK’s APT-20H+EPS+SUSPENSION?
1. Efficiency: With a 50% faster speed than conventional models, the APT-20H improves operational efficiency by reducing transportation time.
2. Comfort: The advanced suspension system ensures a smoother, more comfortable ride, even on rough surfaces.
3. Safety: Foldable side guards protect both operators and goods from potential harm during operation.
4. Maneuverability: The 185-degree rotating EPS steering arm offers unparalleled ease of movement in tight spaces.
5. Dependability: Built to last with heavy-duty materials and the latest technology, this pallet truck promises long-lasting reliability and minimal maintenance.
The APT-20H+EPS+SUSPENSION is an excellent solution for industries looking to speed up material handling operations without compromising safety, comfort, or efficiency. Contact us today for more information or to request a quote for this high-speed powered pallet truck.
