ATT-60 AC
| Quantity: | |
|---|---|

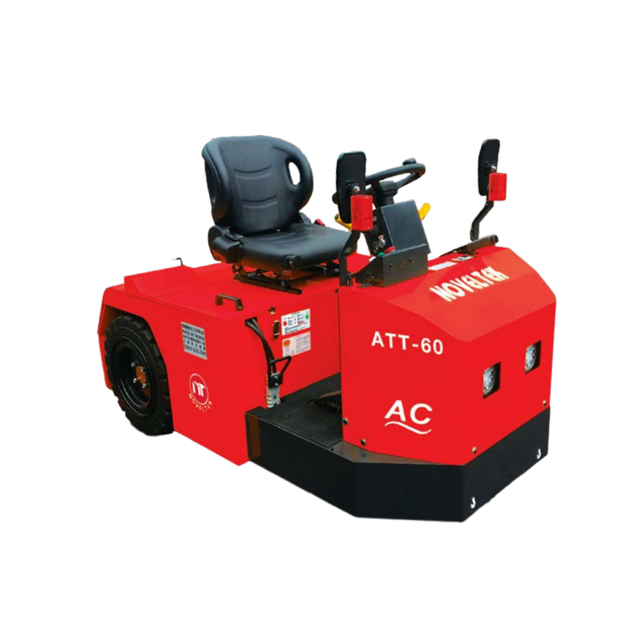

Key Features of ATT-60 AC Electric Tow Tractor
Max Towing Capacity: 6 Tons: Capable of towing large loads, making it suitable for heavy-duty applications.
Efficient AC Motor: AC power ensures longer operational times, stronger performance, and reduced maintenance costs.
Speed and Maneuverability: Reaches speeds up to 12 km/h when loaded and 14 km/h when empty, optimizing efficiency in high-demand environments.
Power Steering and Drive: Power steering on front wheels for precise maneuvering and power drive on rear wheels for increased traction and stability.
Seated Design for Operator Comfort: The AC seat-mounted design reduces operator fatigue and enhances comfort for long shifts.
Waterproofing: With an IP4 rating, it is designed to withstand dust and moisture, ensuring durability in various working environments.
Customizable Hooks: Special hooks can be added to meet specific needs, enhancing flexibility for diverse material handling tasks.
Specifications of ATT-60 AC Tow Tractor
Feature | Specification |
Towing Capacity | 6000 kg (6 Tons) |
Travel Speed (Empty) | 14 km/h |
Travel Speed (Loaded) | 12 km/h |
Gradeability (Empty) | 17% |
Gradeability (Loaded) | 9% |
Braking Mode | Drum Brake (Stay) |
Battery Capacity | 320 Ah / 48V |
Charger | 60 A / 48V |
Drive Motor Power | 8 kW |
Control System | AC Stepless |
Steering Wheel | PU (Φ280×135 mm) |
Truck Weight (with Battery) | 1600 kg |
Truck Weight (without Battery) | 1070 kg |
Turning Radius | 1747 mm |

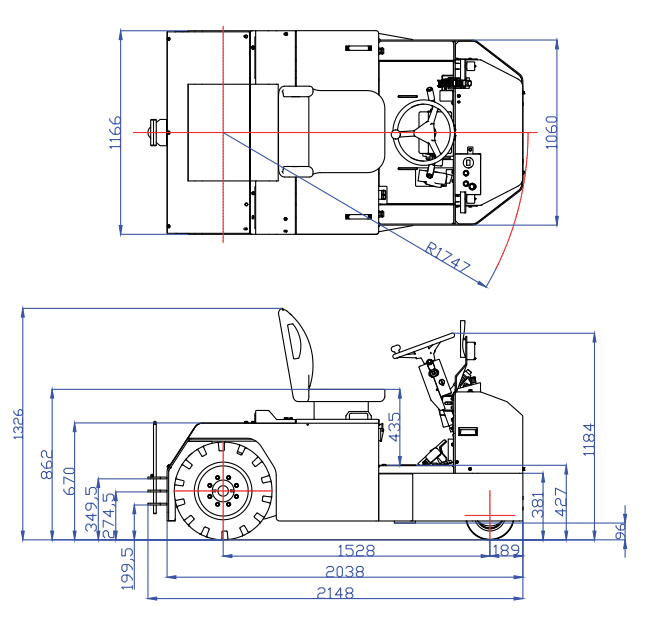

Dimensions of ATT-60 AC Tow Tractor
Dimension | Measurement |
Wheel Base | 1528 mm |
Overall Length (Without Towbar) | 2038 mm |
Overall Length (With Towbar) | 2148 mm |
Overall Width | 1166 mm |
Overall Height | 1326 mm |
Seat Height | 862 mm |
Steering Wheel Height | 1184 mm |
Pedal Height | 427 mm |
Turning Radius | 1747 mm |
Why Choose the ATT-60 AC Electric Tow Tractor?
Powerful Performance: With a robust 6-ton towing capacity and an 8 kW AC motor, the ATT-60 AC is designed to handle demanding tasks in warehouses, airports, and other industrial settings.
Enhanced Operator Comfort: The ergonomic seated design ensures reduced operator fatigue, making it an excellent choice for extended use during heavy shifts.
Low Maintenance Costs: AC-powered motors require less maintenance, helping to reduce long-term operational costs.
Highly Customizable: The inclusion of customizable hooks makes this model adaptable to various material handling applications.
Durability and Weather Resistance: With its IP4 waterproof rating, the ATT-60 AC is built to last in harsh environments, from wet conditions to heavy-duty applications.
Applicable Industries
Industrial Warehouses & Logistics: Streamline material handling in large storage areas.
Airports: Towing luggage carts, cargo, and ground support equipment.
Automotive Industry: Transporting materials and parts in manufacturing plants.
Cargo Handling & Shipping: Efficient movement of goods in ports and docks.
Mining & Construction: Towing heavy materials across challenging terrains.
Retail & E-commerce Warehouses: Enhancing logistics in fast-paced environments.
Get in Touch for a Quote
At NOVELTEK, we pride ourselves on our long-standing reputation as a reliable and environmentally-conscious manufacturer of material handling equipment. With over 30 years of experience, our products are trusted across 38 countries worldwide. Our commitment to low-maintenance, high-performance equipment has allowed us to lead the industry.
For a customized solution tailored to your specific material handling needs, please contact us today! We offer competitive pricing and quick delivery, ensuring your operations run smoothly.
