SPOP-02
| Quantity: | |
|---|---|
Load capacity： 200KG, 440LB

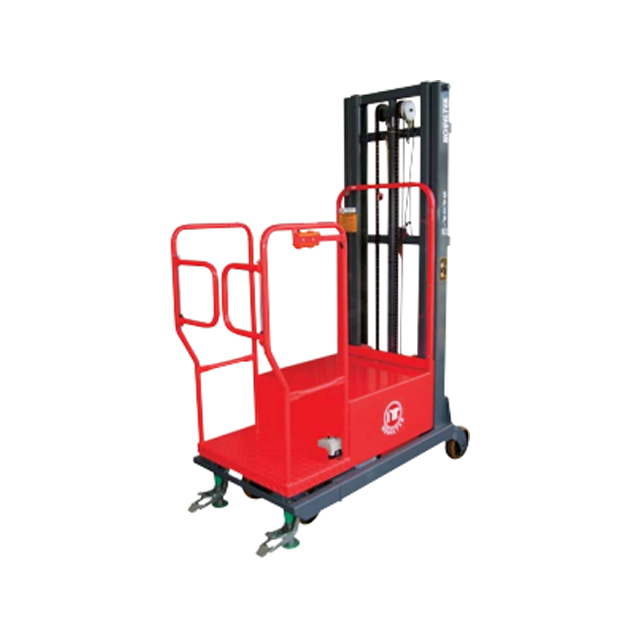

SEMI-POWERED ORDER PICKER STACKERQuiet, clean, high quality.
The picker can pick the goods at 4.5 Meter high.
Picking height 5.0 And 5.5 Meter are optional.
Charger of 110V/12V-12A (build-in) is optional.
Manually propelled, powered lifting order picker stacker.
The up/down switch is built in the side rail. It is very easy to handle.
Light weight stacker. It is very easy operated and very durable quality.
2 pieces of foot parking brakes.
-20oC cold storage type is optional.
Model: SPOP-02 | |
Load capacity | 200 kg |
service weight | 308 kg |
overall length | 1360 mm |
overall width | 700 mm |
Min. mast height | 1910 mm |
Max. height | 3900 mm |
Max. lifting height | 2700 mm |
Min. stand height | 550 mm |
Loading stand heigth | 250 mm |
platform overall length | 970 mm |
Loading stand length | 600 mm |
Loading stand width | 600 mm |
Rear wheel | Ø180x50 mm |
Front wheel | Ø180x50 mm |
Hand rail height | 970 mm |
Lifting speed | 10 - 14 M/MIN |
Lowering speed | 6-9M/MIN |
Lifting motor | 1.5 KW/12V |
Battery | 135AH/12V |
charger(220v'110v)(1phase) | 12V- 12A |
 |  |  |
| Anti-fall down device, Emergency descend device & Brake safety device are options. | ||
Load capacity： 200KG, 440LB
SEMI-POWERED ORDER PICKER STACKERQuiet, clean, high quality.
The picker can pick the goods at 4.5 Meter high.
Picking height 5.0 And 5.5 Meter are optional.
Charger of 110V/12V-12A (build-in) is optional.
Manually propelled, powered lifting order picker stacker.
The up/down switch is built in the side rail. It is very easy to handle.
Light weight stacker. It is very easy operated and very durable quality.
2 pieces of foot parking brakes.
-20oC cold storage type is optional.
Model: SPOP-02 | |
Load capacity | 200 kg |
service weight | 308 kg |
overall length | 1360 mm |
overall width | 700 mm |
Min. mast height | 1910 mm |
Max. height | 3900 mm |
Max. lifting height | 2700 mm |
Min. stand height | 550 mm |
Loading stand heigth | 250 mm |
platform overall length | 970 mm |
Loading stand length | 600 mm |
Loading stand width | 600 mm |
Rear wheel | Ø180x50 mm |
Front wheel | Ø180x50 mm |
Hand rail height | 970 mm |
Lifting speed | 10 - 14 M/MIN |
Lowering speed | 6-9M/MIN |
Lifting motor | 1.5 KW/12V |
Battery | 135AH/12V |
charger(220v'110v)(1phase) | 12V- 12A |
| | |
| Anti-fall down device, Emergency descend device & Brake safety device are options. | ||
