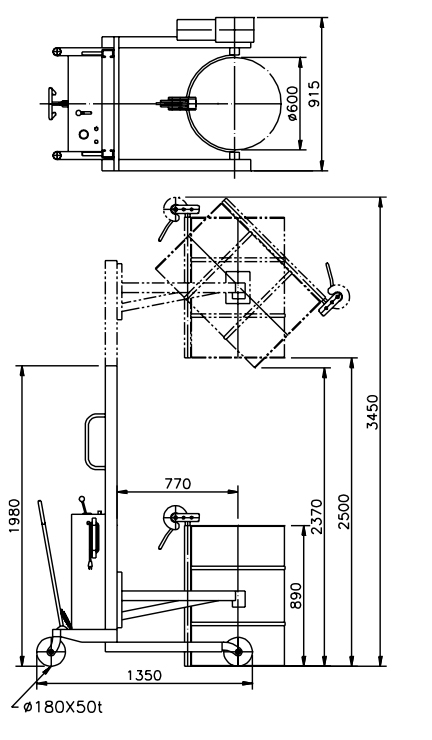

· Min. mast height = 1890 mm
· Overall truck length = 1350 mm
· Overall truck width = 915 mm
· Standard oil tank = Ø580 mm x h890 mm
· Max. oil tank top height = 3450 mm
· Max. oil tank 45o
· Bottom height = 2370mm
· Load center = 770 mm
· Min. clamp center height = 440 mm
· Straddle length = 770 mm
· Electric power operated hydraulic lifting cylinder
· Electric operated rotating gear set of 360o
· Lifting capacity = 300 kg
· Turning radius = 1300 mm
· Front & rear wheels = Ø180x50 mm
· Battery = 135AH/12V
· Charger = 110V/12V-12A or 220V/12V-12A
· Total truck weight = 320 kg
· Clamp method : upper and lower quickly clamp
· The digital weight scale is an optional item. It can turn to zero and deduct weight
· Weighing tolerance :1000 kg±0.1 Kg.
