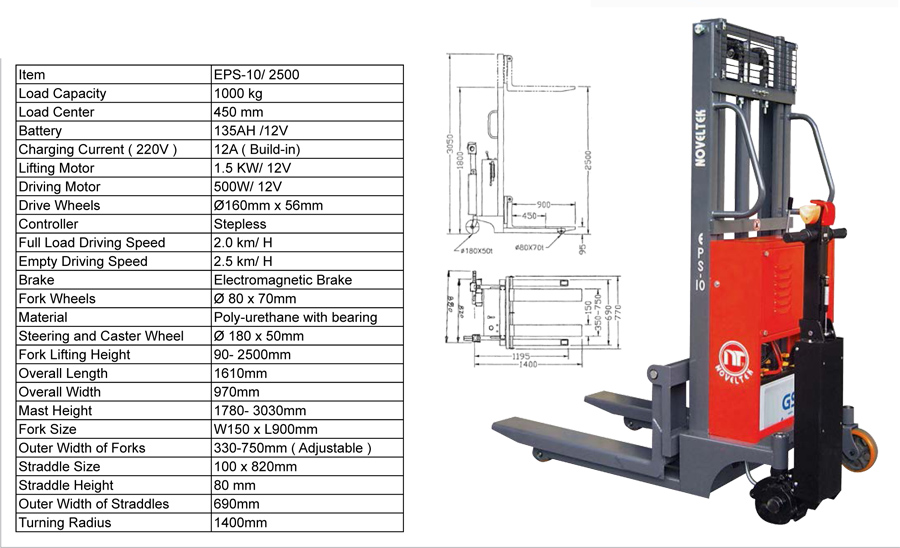

EPS-102500
| Quantity: | |
|---|---|
Item | EPS-10/ 2500 |
Load Capacity | 1000 kg |
Load Center | 450 mm |
Battery | 135AH /12V |
Charging Current ( 220V ) | 12A ( Build-in) |
Lifting Motor | 1.5 KW/ 12V |
Driving Motor | 500W/ 12V |
Drive Wheels | Ø160mm x 56mm |
Controller | Stepless |
Full Load Driving Speed | 2.0 km/ H |
Empty Driving Speed | 2.5 km/ H |
Brake | Electromagnetic Brake |
Fork Wheels | Ø 80 x 70mm |
Material | Poly-urethane with bearing |
Steering and Caster Wheel | Ø 180 x 50mm |
Fork Lifting Height | 90- 2500mm |
Overall Length | 1610mm |
Overall Width | 970mm |
Mast Height | 1780- 3030mm |
Fork Size | W150 x L900mm |
Outer Width of Forks | 330-750mm ( Adjustable ) |
Straddle Size | 100 x 820mm |
Straddle Height | 80 mm |
Outer Width of Straddles | 690mm |
Turning Radius | 1400mm |
Item | EPS-10/ 2500 |
Load Capacity | 1000 kg |
Load Center | 450 mm |
Battery | 135AH /12V |
Charging Current ( 220V ) | 12A ( Build-in) |
Lifting Motor | 1.5 KW/ 12V |
Driving Motor | 500W/ 12V |
Drive Wheels | Ø160mm x 56mm |
Controller | Stepless |
Full Load Driving Speed | 2.0 km/ H |
Empty Driving Speed | 2.5 km/ H |
Brake | Electromagnetic Brake |
Fork Wheels | Ø 80 x 70mm |
Material | Poly-urethane with bearing |
Steering and Caster Wheel | Ø 180 x 50mm |
Fork Lifting Height | 90- 2500mm |
Overall Length | 1610mm |
Overall Width | 970mm |
Mast Height | 1780- 3030mm |
Fork Size | W150 x L900mm |
Outer Width of Forks | 330-750mm ( Adjustable ) |
Straddle Size | 100 x 820mm |
Straddle Height | 80 mm |
Outer Width of Straddles | 690mm |
Turning Radius | 1400mm |
