Advanced Powered Container Tow Truck

5 0 Reviews

· Max Towing Capacity : 16,000KG (16 TONS)
· The best choice for container scheduling needs

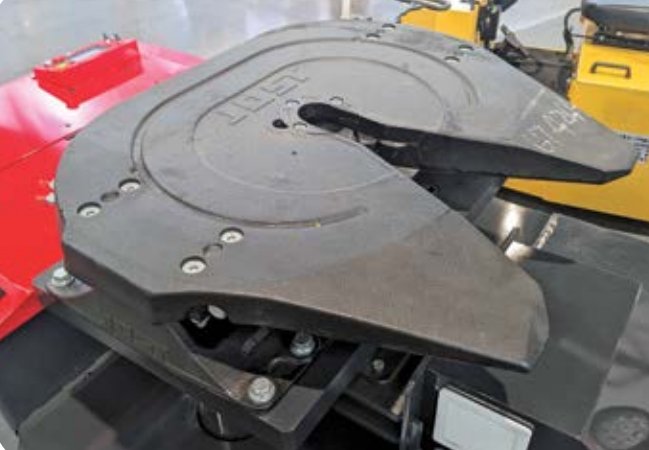

· Hydraulic trailer pan lift system
· Standard equipped with air duct air brake function of container Tow Truck
· Electronic Power Steering system (EPS system),very easy to drive
· European original imported battery, long lasting
· Made In Taiwan, Quality Assurance

Model:
CTT-160

Availability:

Product Description

With air duct air brake function of container Tow Truck

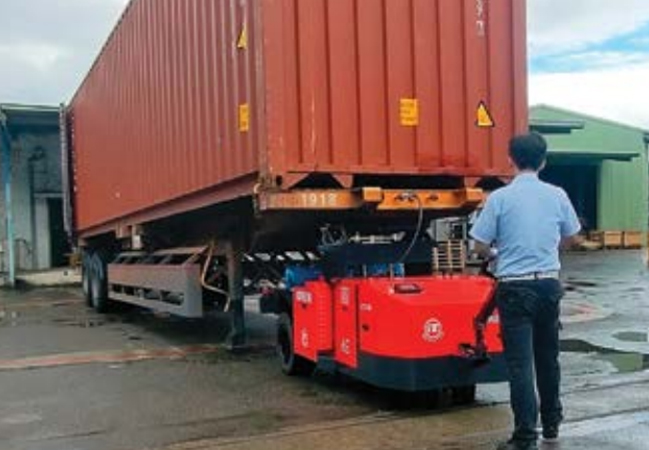

Efficiency adjust cargo container position

CTT-160 Model

Max Towing Capacity	16000kg (16 Tons)
Max.Travel Speed	Loaded	2.0km/h
	Empty	3.0km/h
Gradeability	Loaded	8%
	Empty	14%
Overall Dimensions Size	L2820mm W1609mm
Steering system	steering arm + EPS
Turning Radius	2540mm
Tow Truck Tray Lift Height	Min : 895mm
	Max : 1190 mm
Air Pressure Pump	12V/5HP Exhaust Volume 420L/min Empty Barrel Capacity 58L
Motor Power	Drive Motor	10KW/48V
	Lift Motor	12KW/48V
	Steer Motor	0.4KW/48V
Battery	320Ah/48V European Original Imported Battery
Steering wheel	size	Ø380╳155 mm
	material	slip-resistant PU
Steering wheel	size	23╳10-12
	material	PU
Brake	Host	Electromagnetic spring pressure brake
	Cargo counter truck	pneumatic brake
Standard Equipment	EPS Electronic Power Steering、Anti-Slip Rubber Wheels 、External Charger
Safety Equipment	Reversing Anti-Collision Button 、Emergency Power- Off Button 、LED-Warning Light 、Driving Buzzer
