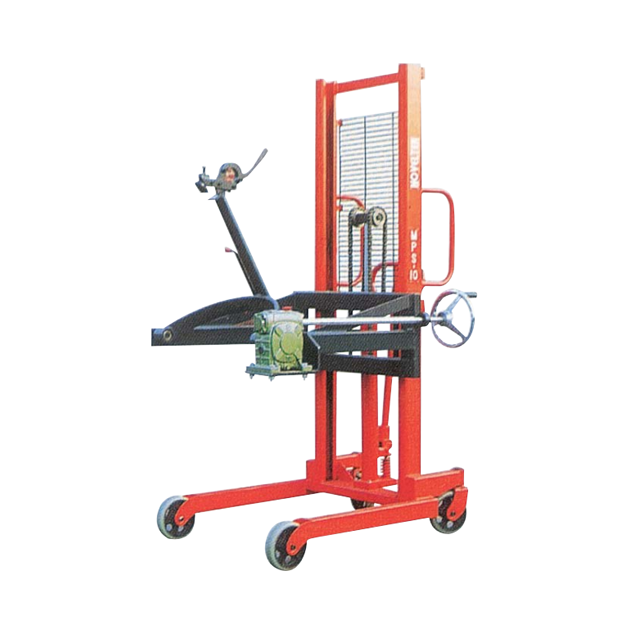

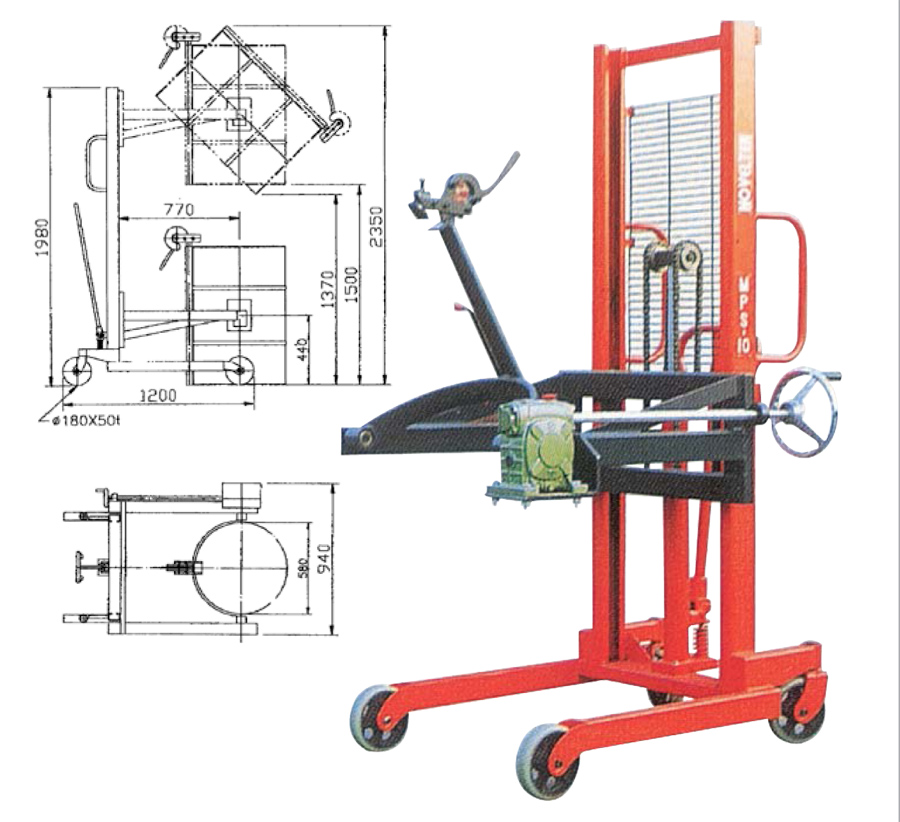

Manual Standard Oil Tank Rotating Stacker

MANUAL STANDARD OIL TANK ROTATING STACKER

• Lifting capacity : 300 kg

• Overall truck length : 1200 mm

• Overall truck width : 940 mm

• Min. mast height : 1980 mm

• Max. lifting height : 1400 mm

• Max. oil tank 45o bottom height : 1370 mm

• Max. oil tank top height : 2350 mm

• Truck weight : 195 kg

• Straddle length : 770 mm

• Min. clamp center height : 440 mm

• Turning radius : 1250 mm

• Front & rear wheels : Ø180x50 mm

• Manual operated hydraulic lifting cylinder

• Manual operated rotating gear set of 360o

• Standard oil tank : Ø580 mm x H890 mm

• Clamp method : upper and lower quickly clamp
